SKU: LFTC3/4EC-RHP

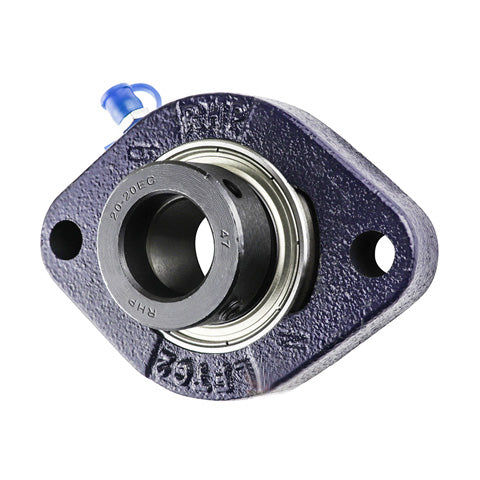

RHP LFTC3/4EC Two Bolt Oval Cast Iron Flange Housing Bearing 3/4 inch Bore
RHP LFTC3/4EC Two Bolt Oval Cast Iron Flange Housing Bearing 3/4 inch Bore
Regular price
£36.97
ex VAT£44.36inc. VAT
Regular price
Sale price
£36.97
ex VAT£44.36
inc. VAT
In stock
Price Break
10+
£32.90
19+
£31.05
29+
£30.69
39+
£30.32
49+
£29.95
74+
£29.58
99+
£27.73
199+
£27.36
249+
£26.99
499+
£26.62
999+
£25.88
Couldn't load pickup availability
Description
Description
|
RHP LFTC EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- LFTC
- Bolt Hole Centres:
- 71.501mm = 2.815 inch
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 2.618 inch |
| H | 3.563 inch |
| J | 2.815 inch |
| G | 0.3125 inch |
| A | 0.669 inch |
| A2 | 1.296 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.311 inch |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-3/4ECG+insonly">1220-3/4ECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
