SKU: LFTC20A-RHP

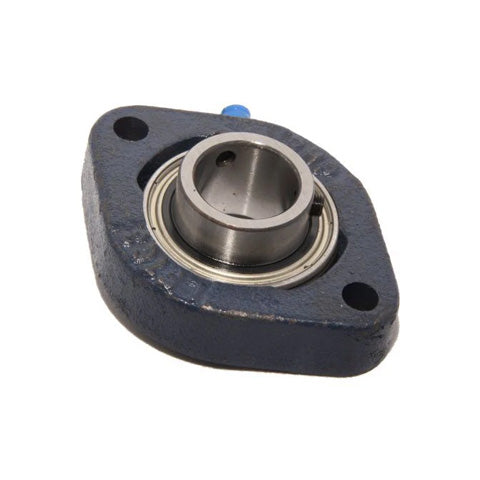

RHP LFTC20A Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
RHP LFTC20A Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
Regular price
£34.11
ex VAT£40.93inc. VAT
Regular price
Sale price
£34.11
ex VAT£40.93
inc. VAT
In stock
Price Break
10+
£30.36
20+
£28.65
30+
£28.31
40+
£27.97
50+
£27.63
75+
£27.29
100+
£25.58
200+
£25.24
250+
£24.90
500+
£24.56
1000+
£23.88
Share this product
Description
Description
|
RHP LFTC A Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- LFTC
- Bolt Hole Centres:
- 71.5mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 66.5mm |
| H | 90.5mm |
| J | 71.5mm |
| G | 8mm |
| A | 17mm |
| A1 | 27.76mm |
| B1 | 25.77mm |
| s1 | 7.56mm |
| d1 | 28.5mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-20AG+insonly">1220-20AG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
