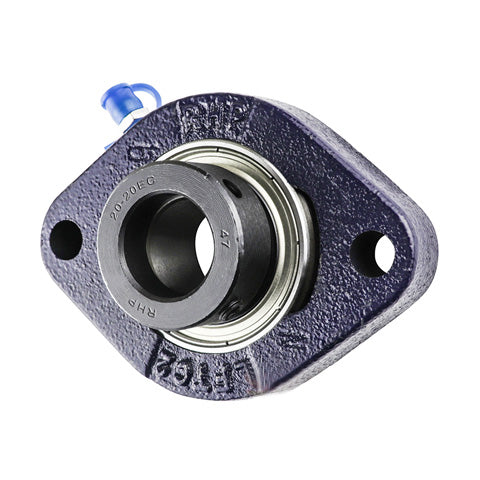

• RHP LFTC15/16EC Two Bolt Oval Cast Iron Flange Housing Bearing 15/16 inch Bore
1 1

SKU: LFTC15/16EC-RHP

RHP LFTC15/16EC Two Bolt Oval Cast Iron Flange Housing Bearing 15/16 inch Bore

RHP LFTC15/16EC Two Bolt Oval Cast Iron Flange Housing Bearing 15/16 inch Bore
£41.81 ex VAT£50.17inc. VAT
£41.81 ex VAT£50.17 inc. VAT
Sale Sold out

In stock

Price Break
10+ £37.21
20+ £35.12
30+ £34.70
40+ £34.28
50+ £33.87
75+ £33.45
100+ £31.36
200+ £30.94
250+ £30.52
500+ £30.10
1000+ £29.27
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP LFTC EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back
Brand / Quality:
RHP - High Quality
Inside Diameter:
23.81mm = 0.937 (15/16) inch
Style:
LFTC
Bolt Hole Centres:
75.997mm = 2.992 inch
Technical
Bore 15/16 inch
L 2.795 inch
H 3.78 inch
J 2.992 inch
G 0.3125 inch
A 0.689 inch
A2 1.292 inch
B2 1.217 inch
s1 0.298 inch
d2 1.5 inch
Dynamic load 14000 N
Static load 7880 N
Rec max speed 6250 rpm
Weight 0.5 kg
Insert <a href="advanced_search_result.php?keywords=1225-15/16ECG+insonly">1225-15/16ECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
