SKU: KRE30PPA-MB-IKO

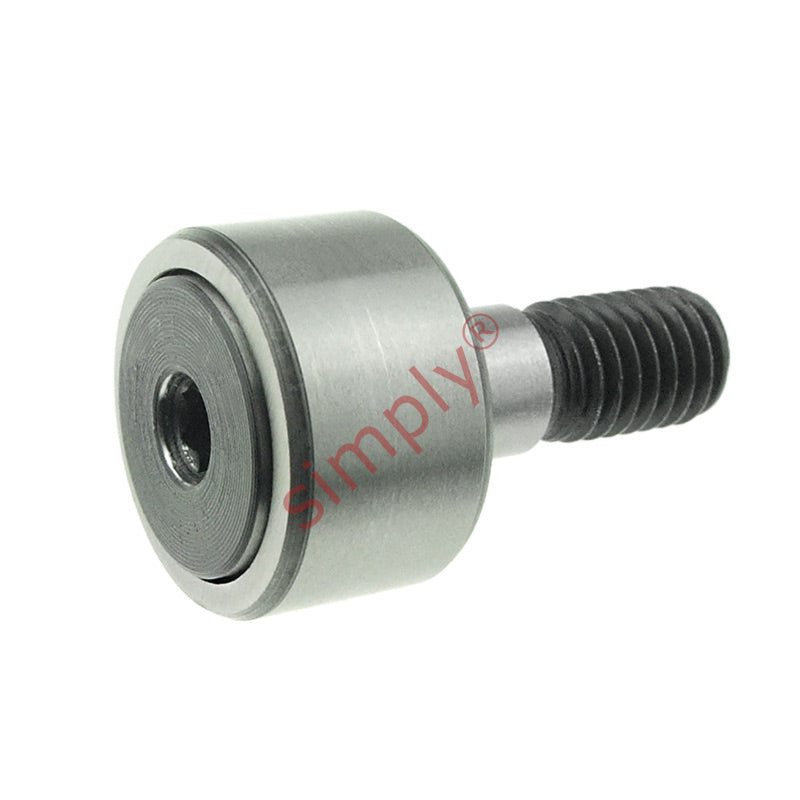

IKO KRE30PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 30x14x15 M12x1.5 Thread
IKO KRE30PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 30x14x15 M12x1.5 Thread
Regular price
£77.56
ex VAT£93.07inc. VAT
Regular price
Sale price
£77.56
ex VAT£93.07
inc. VAT
In stock
Price Break
5+
£76.78
10+
£73.68
20+
£72.13
50+
£69.80
100+
£68.25
500+
£64.37
1000+
£54.29
Couldn't load pickup availability
Description
Description
KRE-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on-side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 30mm
- Width:
- 14mm
- Pitch:
- M12x1.5
Technical
Technical
| D | 30mm |
|---|---|
| C | 14mm |
| d(Stud Diameter) | 15mm |
| B | 40mm |
| B1 | 25mm |
| C1 | 0.6mm |
| d1 | 23mm |
| G | M12x1.5 |
| G1 | 13mm |
| r min | 0.6mm |
| SW | 6mm |
| Eccentric stud c | 0.5mm |
| B3 | 11mm |
| Dynamic load | 6440 N |
| Static load | 8000 N |
| Fatigue load limit Pu | 880 N |
| Radial dynamic load | 7800 N |
| Radial static load | 11200 N |
| Speed rating | 5500 rpm |
| Weight | 93 g |
