SKU: KR90PPA-MB

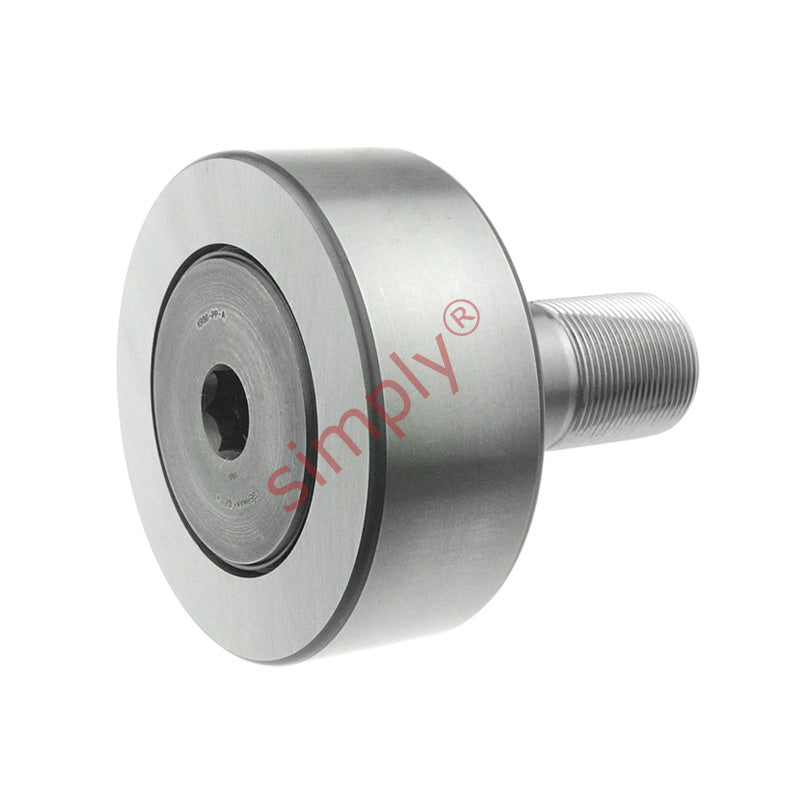

Major Brand KR90PPA Contact Sealed Crowned Cam Follower 90x35x30 M30x1.5 Thread
Major Brand KR90PPA Contact Sealed Crowned Cam Follower 90x35x30 M30x1.5 Thread
Regular price
£182.50
ex VAT£219.00inc. VAT
Regular price
Sale price
£182.50
ex VAT£219.00
inc. VAT
In stock
Price Break
10+
£162.43
19+
£153.30
29+
£151.48
39+
£149.65
49+
£147.83
74+
£146.00
99+
£136.88
199+
£135.05
249+
£133.23
499+
£131.40
999+
£127.75
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 90mm
- Width:
- 35mm
- Pitch:
- M30x1.5
Technical
Technical
| D | 90mm |
|---|---|
| C | 35mm |
| d(Stud Diameter) | 30mm |
| B | 100mm |
| B1 | 63mm |
| B2 | 15mm |
| C1 | 1mm |
| d1 | 53mm |
| G | M30x1.5 |
| G1 | 32mm |
| M1 | 4mm |
| r min | 1.1mm |
| SW | 14mm |
| Dynamic load | 38000 N |
| Static load | 76500 N |
| Fatigue load limit Pu | 9500 N |
| Radial dynamic load | 160000 N |
| Radial static load | 228000 N |
| Speed rating | 1300 rpm |
| Weight | 1980 g |
