SKU: KR62PPA-EU

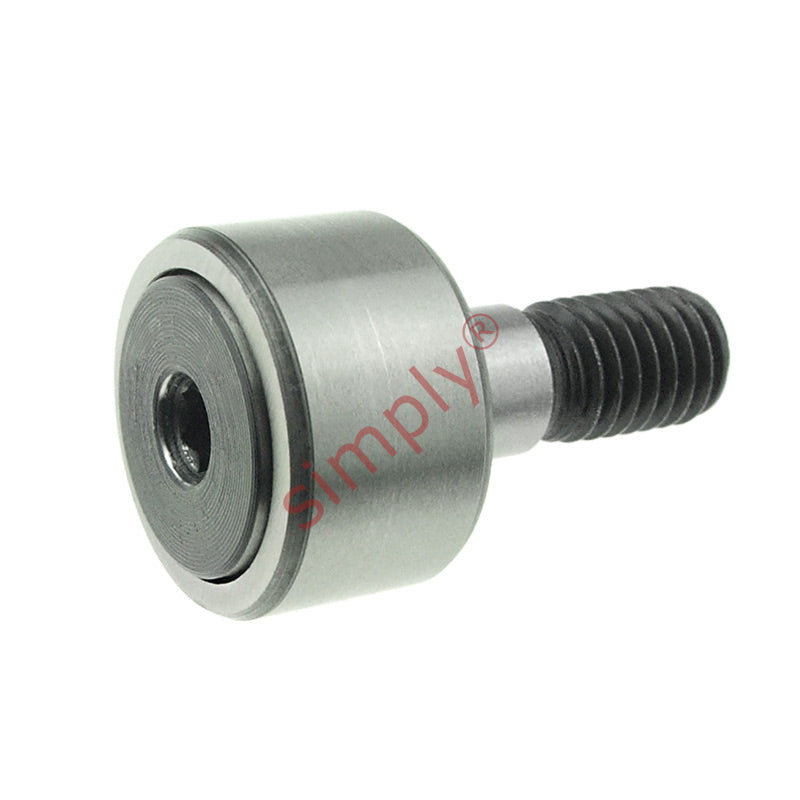

Budget KR62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread
Budget KR62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread
Regular price
£19.80
ex VAT£23.76inc. VAT
Regular price
Sale price
£19.80
ex VAT£23.76
inc. VAT
In stock
Price Break
10+
£17.62
19+
£16.63
29+
£16.43
39+
£16.24
49+
£16.04
74+
£15.84
99+
£14.85
199+
£14.65
249+
£14.45
499+
£14.26
999+
£13.86
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 62mm
- Width:
- 29mm
- Pitch:
- M24x1.5
Technical
Technical
| D | 62mm |
|---|---|
| C | 29mm |
| d (Stud Diameter) | 24mm |
| B | 80mm |
| B1 | 49.5mm |
| B2 | 11mm |
| C1 | 0.8mm |
| d1 | 44mm |
| G | M24x1.5 |
| G1 | 25mm |
| M1 | 4mm |
| r min | 1mm |
| SW | 14mm |
| Dynamic load | 24600 N |
| Static load | 44000 N |
| Fatigue load limit Pu | 5500 N |
| Radial dynamic load | 58500 N |
| Radial static load | 85000 N |
| Speed rating | 1900 rpm |
| Weight | 770 g |
