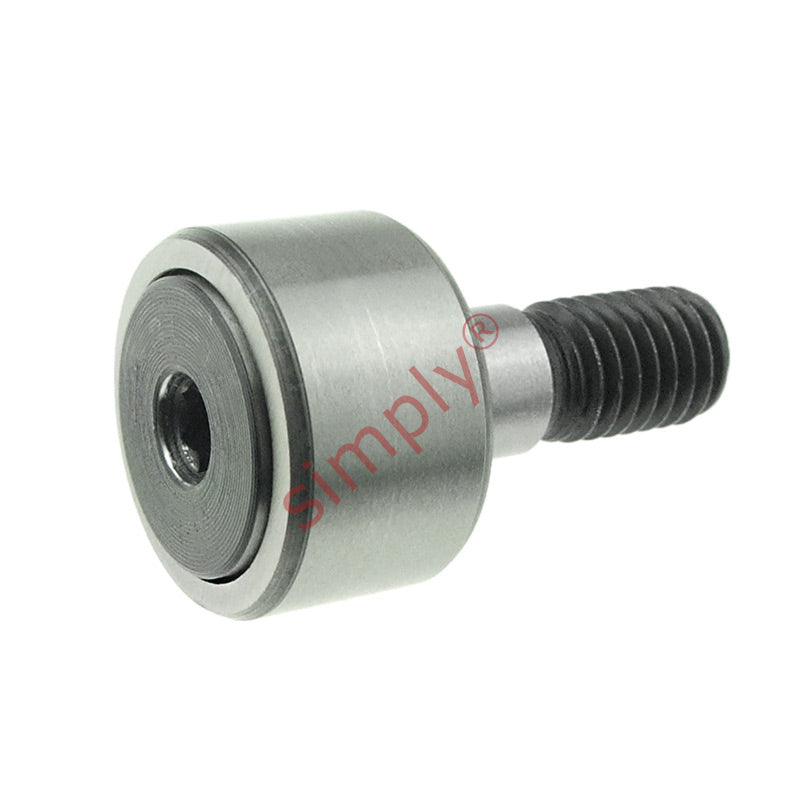

• IKO KR52PP Contact Sealed Crowned Cam Follower 52x24x20 M20x1.5 Thread
1 1

SKU: KR52PP-MB-IKO

IKO KR52PP Contact Sealed Crowned Cam Follower 52x24x20 M20x1.5 Thread

IKO KR52PP Contact Sealed Crowned Cam Follower 52x24x20 M20x1.5 Thread
£66.41 ex VAT£79.69inc. VAT
£66.41 ex VAT£79.69 inc. VAT
Sale Sold out

In stock

Price Break
10+ £65.75
19+ £63.09
29+ £61.76
39+ £59.77
49+ £58.44
74+ £55.12
99+ £46.49
199+ £0.00
249+ £0.00
499+ £0.00
999+ £0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
Brand / Quality:
IKO - High Quality
Outside Diameter:
52mm
Width:
24mm
Pitch:
M20x1.5
Technical
D 52mm
C 24mm
d(Stud Diameter) 20mm
B 66mm
B1 40.5mm
B2 9mm
C1 0.8mm
d1 37mm
G M20x1.5
G1 21mm
M 8mm
M1 4mm
r min 1mm
Dynamic load 15700 N
Static load 27000 N
Fatigue load limit Pu 3200 N
Radial dynamic load 36000 N
Radial static load 51000 N
Speed rating 2400 rpm
Weight 460 g
