SKU: KR30PPA-EU

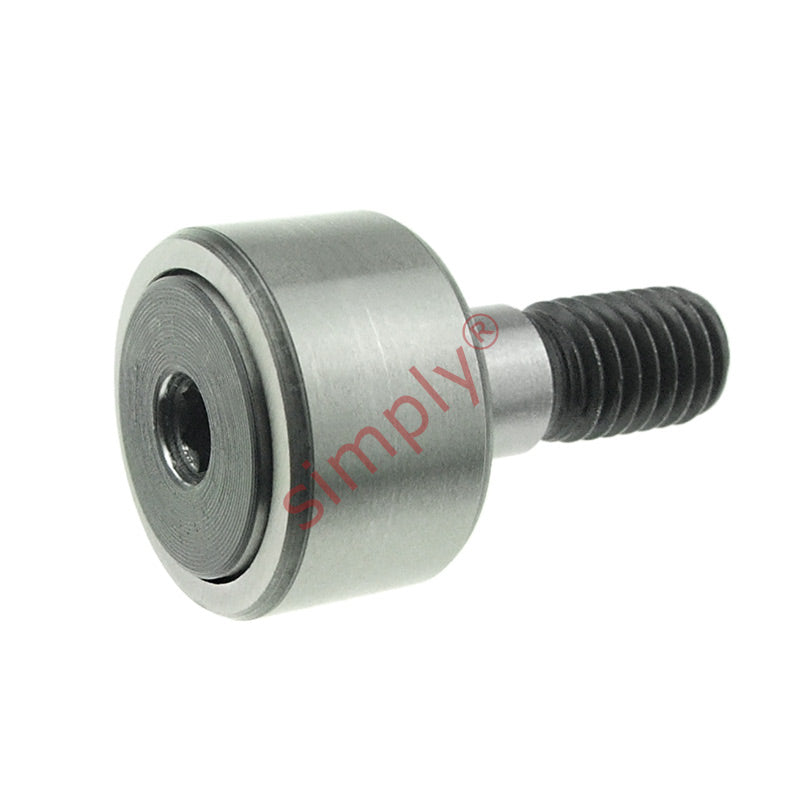

Budget KR30PPA Contact Sealed Crowned Cam Follower 30x14x12 M12x1.5 Thread
Budget KR30PPA Contact Sealed Crowned Cam Follower 30x14x12 M12x1.5 Thread
Regular price
£36.01
ex VAT£43.21inc. VAT
Regular price
Sale price
£36.01
ex VAT£43.21
inc. VAT
In stock
Price Break
10+
£32.05
19+
£30.25
29+
£29.89
39+
£29.53
49+
£29.17
74+
£28.81
99+
£27.01
199+
£26.65
249+
£26.29
499+
£25.93
999+
£25.21
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 30mm
- Width:
- 14mm
- Pitch:
- M12x1.5
Technical
Technical
| D | 30mm |
|---|---|
| C | 14mm |
| d (Stud Diameter) | 12mm |
| B | 40mm |
| B1 | 25mm |
| B2 | 6mm |
| C1 | 0.6mm |
| d1 | 23mm |
| G | M12x1.5 |
| G1 | 13mm |
| M1 | 3mm |
| r min | 0.6mm |
| SW | 6mm |
| Dynamic load | 6440 N |
| Static load | 8000 N |
| Fatigue load limit Pu | 880 N |
| Radial dynamic load | 7800 N |
| Radial static load | 11200 N |
| Speed rating | 5500 rpm |
| Weight | 88 g |
