SKU: KR19PPSK-MB

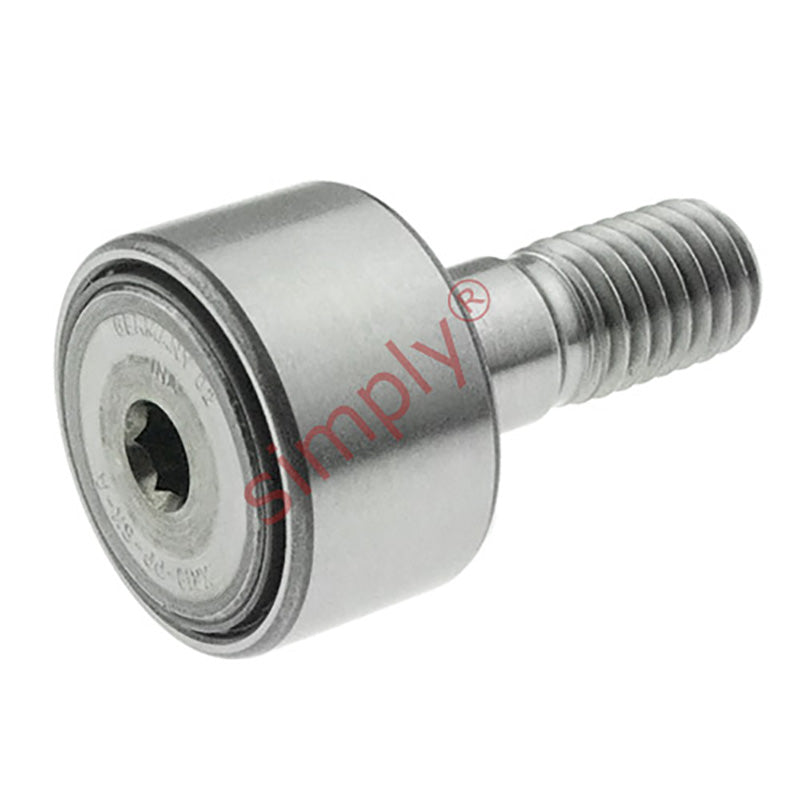

Major Brand KR19PPSK Contact Sealed Crowned Stud Type Cam Follower 19x11x8 M8 Thread
Major Brand KR19PPSK Contact Sealed Crowned Stud Type Cam Follower 19x11x8 M8 Thread
Regular price
£34.38
ex VAT£41.26inc. VAT
Regular price
Sale price
£34.38
ex VAT£41.26
inc. VAT
Equivalent to: KR19SKPPA KR19SKPP
In stock
Price Break
10+
£30.60
19+
£28.88
29+
£28.53
39+
£28.19
49+
£27.85
74+
£27.50
99+
£25.78
199+
£25.44
249+
£25.10
499+
£24.75
999+
£24.07
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
Equivalent: KR19SKPPA KR19SKPP
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 19mm
- Width:
- 11mm
- Pitch:
- M8
Technical
Technical
| D | 19mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 8mm |
| B | 32mm |
| B1 | 20mm |
| C1 | 0.6mm |
| d1 | 15mm |
| G | M8mm |
| G1 | 10mm |
| r min | 0.15mm |
| SW | 4mm |
| Dynamic load | 3470 N |
| Static load | 3800 N |
| Fatigue load limit Pu | 415 N |
| Radial dynamic load | 3800 N |
| Radial static load | 5500 N |
| Speed rating | 11000 rpm |
| Weight | 29 g |
