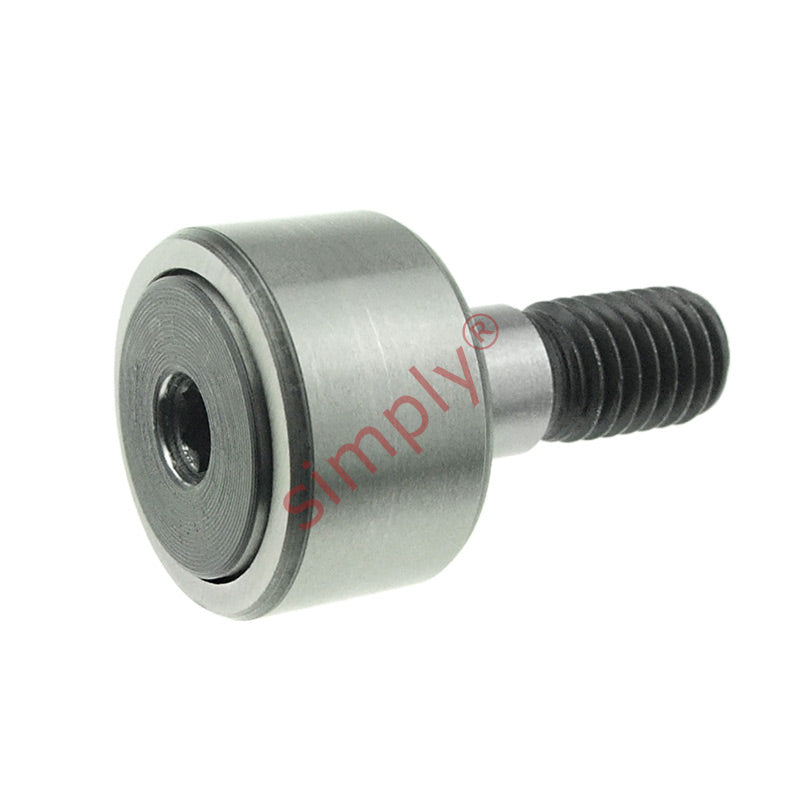

Budget KR19 Crowned Cam Follower 19x11x8 M8 Thread
Budget KR19 Crowned Cam Follower 19x11x8 M8 Thread
Regular price
£7.97
ex VAT£9.56inc. VAT
Regular price
Sale price
£7.97
ex VAT£9.56
inc. VAT
In stock
Price Break
10+
£7.09
19+
£6.69
29+
£6.62
39+
£6.54
49+
£6.46
74+
£6.38
99+
£5.98
199+
£5.90
249+
£5.82
499+
£5.74
999+
£5.58
Description
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 19mm
- Width:
- 11mm
- Pitch:
- M8
Technical
Technical
| D | 19mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 8mm |
| B | 32mm |
| B1 | 20mm |
| C1 | 0.6mm |
| d1 | 15mm |
| G | M8 |
| G1 | 10mm |
| M | 4mm |
| r min | 0.15mm |
| Dynamic load | 3470 N |
| Static load | 3800 N |
| Fatigue load limit Pu | 415 N |
| Radial dynamic load | 3800 N |
| Radial static load | 5500 N |
| Speed rating | 11000 rpm |
| Weight | 29 g |
