SKU: KR16PPSKA-EU

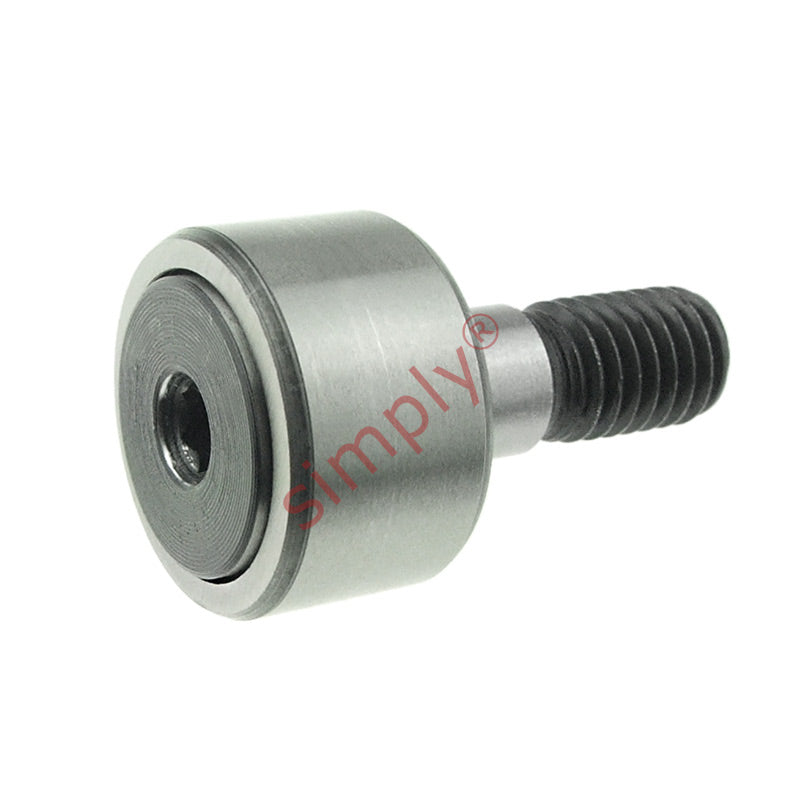

Budget KR16PPSKA Contact Sealed Crowned Cam Follower 16x11x6 M6 Thread
Budget KR16PPSKA Contact Sealed Crowned Cam Follower 16x11x6 M6 Thread
Regular price
£13.98
ex VAT£16.78inc. VAT
Regular price
Sale price
£13.98
ex VAT£16.78
inc. VAT
Equivalent to: CF6UUR-A
In stock
Price Break
10+
£12.44
19+
£11.74
29+
£11.60
39+
£11.46
49+
£11.32
74+
£11.18
99+
£10.49
199+
£10.35
249+
£10.21
499+
£10.07
999+
£9.79
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
Equivalent: CF6UUR-A
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 16mm
- Width:
- 11mm
- Pitch:
- M6
Technical
Technical
| D | 16mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 6mm |
| B | 28mm |
| B1 | 16mm |
| C1 | 0.6mm |
| d1 | 12.5mm |
| G | M6 |
| G1 | 8mm |
| r min | 0.15mm |
| SW | 4mm |
| Dynamic load | 3140 N |
| Static load | 3200 N |
| Fatigue load limit Pu | 345 N |
| Radial dynamic load | 2900 N |
| Radial static load | 4150 N |
| Speed rating | 14000 rpm |
| Weight | 19 g |
