SKU: KR16-EU

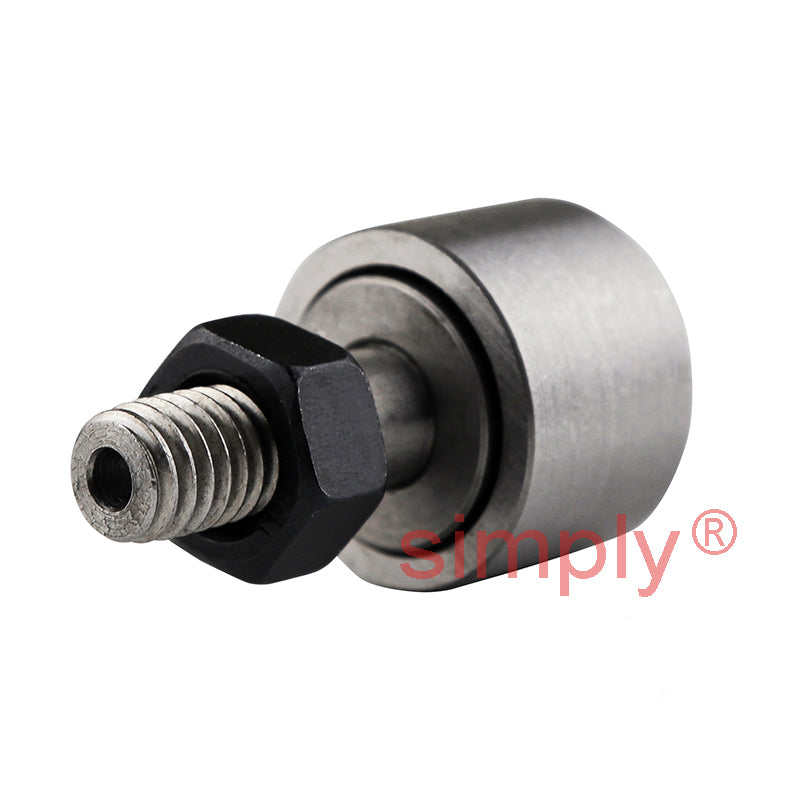

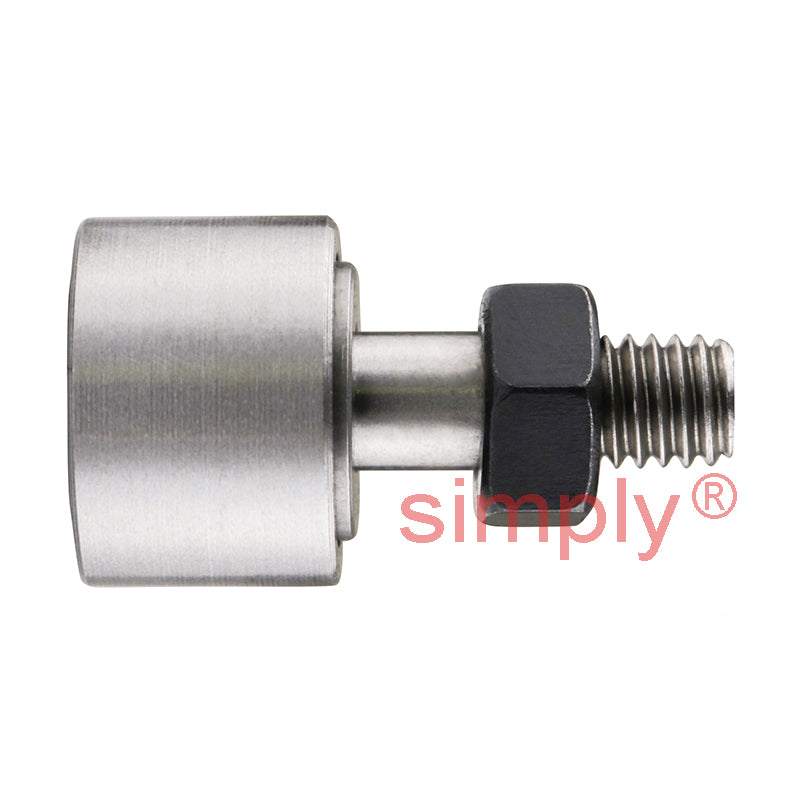

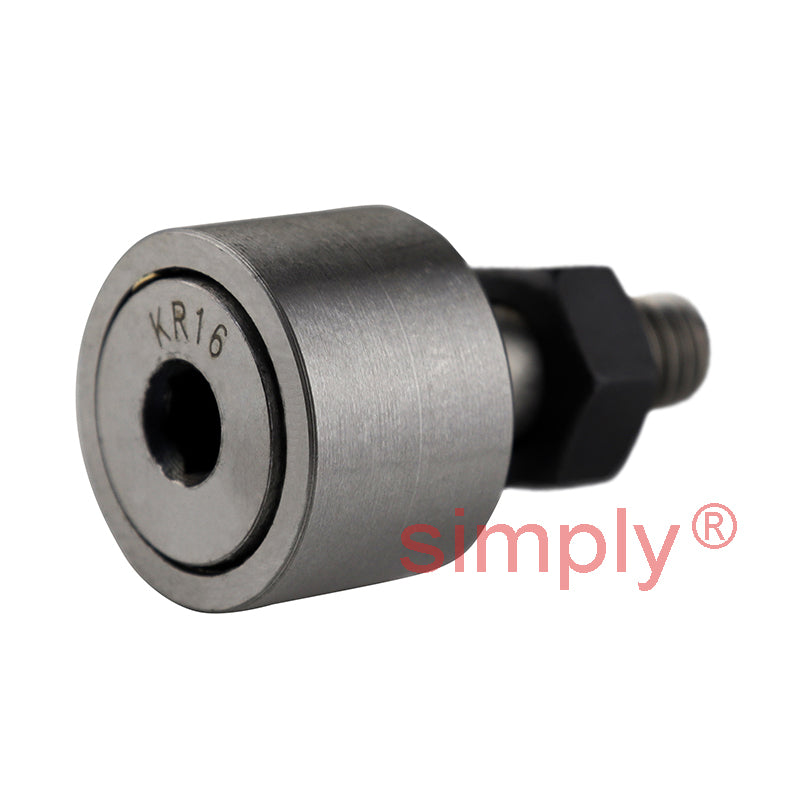

Budget KR16 Crowned Cam Follower 16x11x6 M6 Thread
Budget KR16 Crowned Cam Follower 16x11x6 M6 Thread
Regular price
£8.19
ex VAT£9.83inc. VAT
Regular price
Sale price
£8.19
ex VAT£9.83
inc. VAT
In stock
Price Break
10+
£7.29
19+
£6.88
29+
£6.80
39+
£6.72
49+
£6.63
74+
£6.55
99+
£6.14
199+
£6.06
249+
£5.98
499+
£5.90
999+
£5.73
Description
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 16mm
- Width:
- 11mm
- Pitch:
- M6
Technical
Technical
| D | 16mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 6mm |
| B | 28mm |
| B1 | 16mm |
| C1 | 0.6mm |
| d1 | 12.5mm |
| G | M6 |
| G1 | 8mm |
| M | 4mm |
| r min | 0.15mm |
| Dynamic load | 3140 N |
| Static load | 3200 N |
| Fatigue load limit Pu | 345 N |
| Radial dynamic load | 2900 N |
| Radial static load | 4150 N |
| Speed rating | 14000 rpm |
| Weight | 19 g |
