SKU: KMTA5-SKF

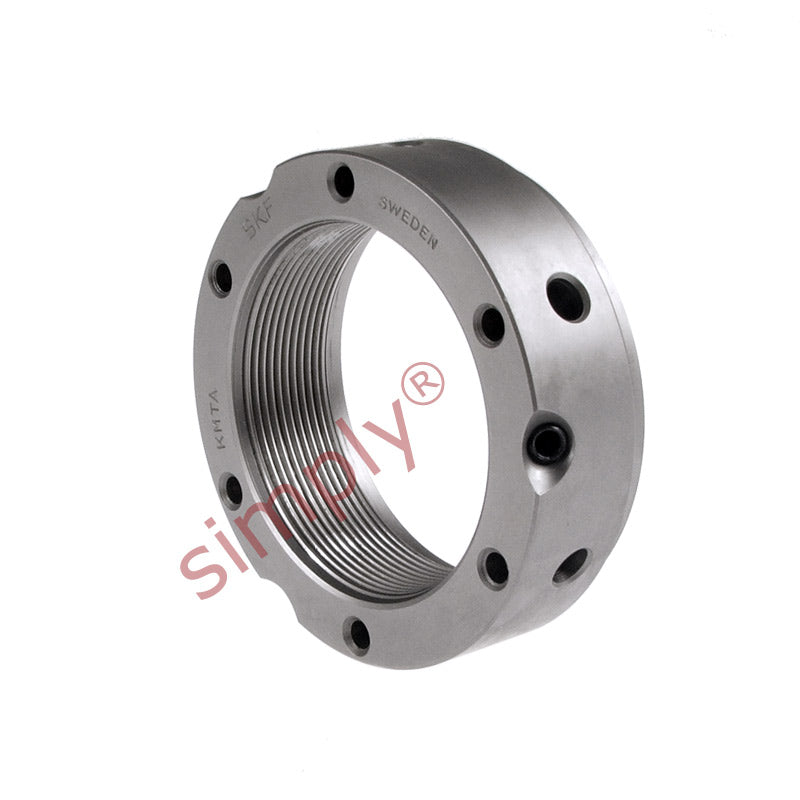

SKF KMTA5 Precision Locking Nut with Locking Pins M25x1.5mm
SKF KMTA5 Precision Locking Nut with Locking Pins M25x1.5mm
Regular price
£65.74
ex VAT£78.89inc. VAT
Regular price
Sale price
£65.74
ex VAT£78.89
inc. VAT
In stock
Price Break
10+
£58.51
19+
£55.22
29+
£54.56
39+
£53.90
49+
£53.25
74+
£52.59
99+
£49.30
199+
£48.64
249+
£47.99
499+
£47.33
999+
£46.02
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M25x1.5
Technical
Technical
| G | M25x1.5 |
|---|---|
| d2 | 42mm |
| d3 | 35mm |
| d4 | 26mm |
| B | 20mm |
| J1 | 32.5mm |
| J2 | 11mm |
| N1 | 4.3mm |
| N2 | 4mm |
| Axial load capacity | 130 kN |
| Loosening torque | 45 Nm |
| Weight | 0.13 kg |
| Spanner | B40-42 |
| Grub Screw | M6 |
| Screw torque | 8 Nm |
| Name | KMTA5 |
