SKU: KMTA20-SKF

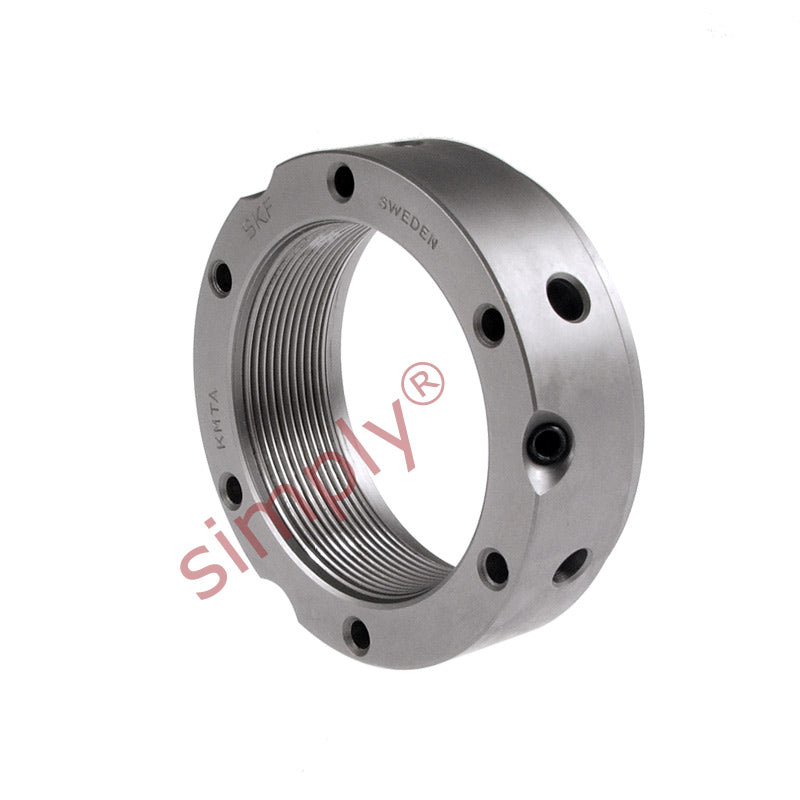

SKF KMTA20 Precision Locking Nut with Locking Pins M100x2mm
SKF KMTA20 Precision Locking Nut with Locking Pins M100x2mm
Regular price
£223.57
ex VAT£268.28inc. VAT
Regular price
Sale price
£223.57
ex VAT£268.28
inc. VAT
In stock
Price Break
10+
£198.98
19+
£187.80
29+
£185.56
39+
£183.33
49+
£181.09
74+
£178.86
99+
£167.68
199+
£165.44
249+
£163.21
499+
£160.97
999+
£156.50
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M100x2
Technical
Technical
| G | M100x2 |
|---|---|
| d2 | 130mm |
| d3 | 120mm |
| d4 | 103mm |
| B | 32mm |
| J1 | 118mm |
| J2 | 17mm |
| N1 | 6.4mm |
| N2 | 8mm |
| Axial load capacity | 740 kN |
| Loosening torque | 840 Nm |
| Weight | 1.3 kg |
| Spanner | B120-130 |
| Grub Screw | M10 |
| Screw torque | 35 Nm |
| Name | KMTA20 |
