SKU: KMTA18-SKF

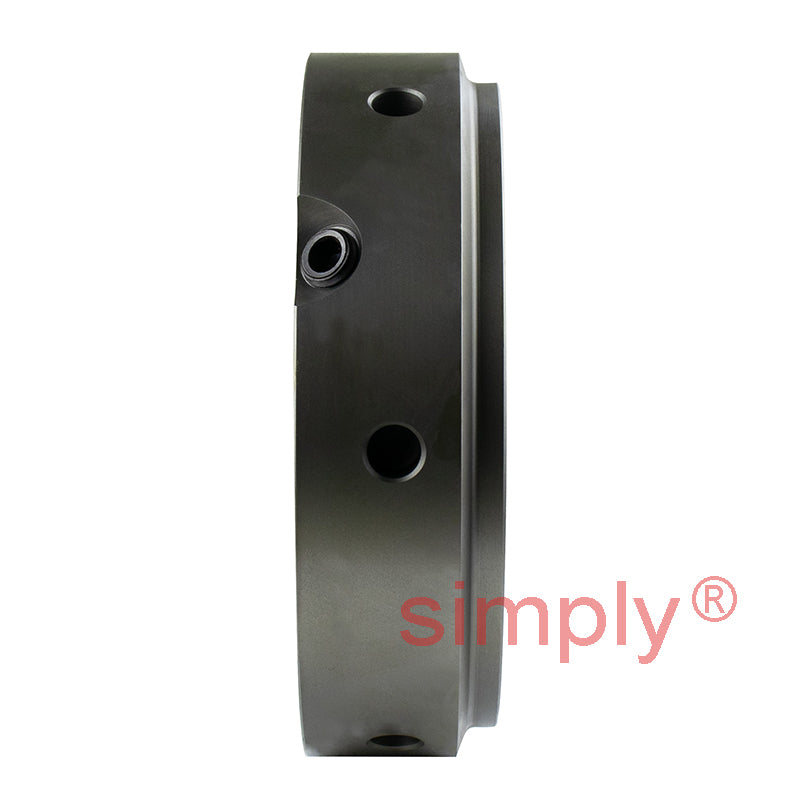

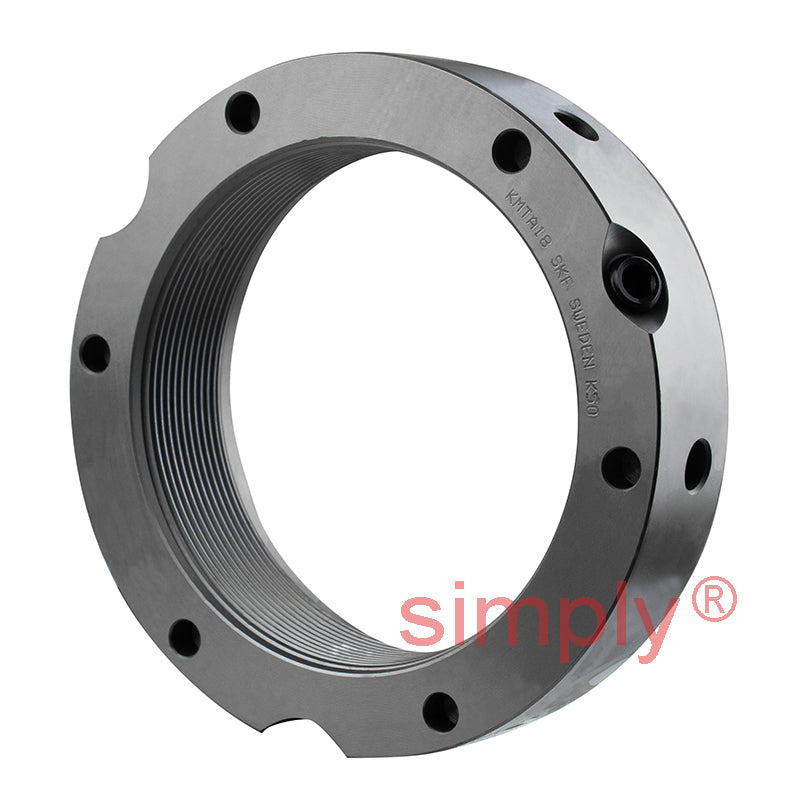

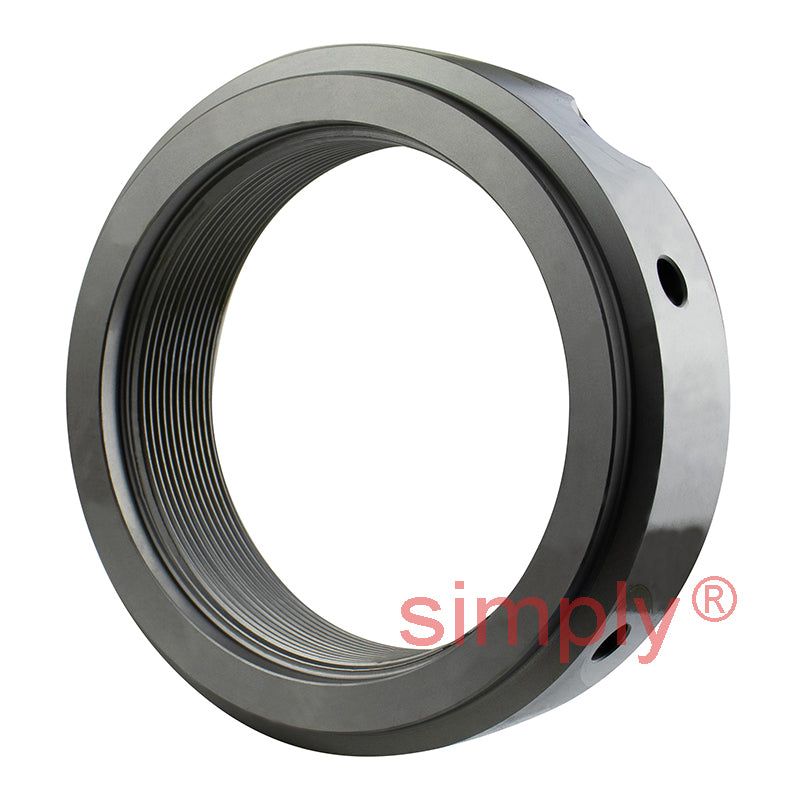

SKF KMTA18 Precision Locking Nut with Locking Pins M90x2mm
SKF KMTA18 Precision Locking Nut with Locking Pins M90x2mm
Regular price
£197.39
ex VAT£236.87inc. VAT
Regular price
Sale price
£197.39
ex VAT£236.87
inc. VAT
In stock
Price Break
10+
£175.68
19+
£165.81
29+
£163.83
39+
£161.86
49+
£159.89
74+
£157.91
99+
£148.04
199+
£146.07
249+
£144.10
499+
£142.12
999+
£138.17
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M90x2
Technical
Technical
| G | M90x2 |
|---|---|
| d2 | 120mm |
| d3 | 110mm |
| d4 | 93mm |
| B | 32mm |
| J1 | 108mm |
| J2 | 17mm |
| N1 | 6.4mm |
| N2 | 8mm |
| Axial load capacity | 680 kN |
| Loosening torque | 720 Nm |
| Weight | 1.2 kg |
| Spanner | B120-130 |
| Grub Screw | M10 |
| Screw torque | 35 Nm |
| Name | KMTA18 |
