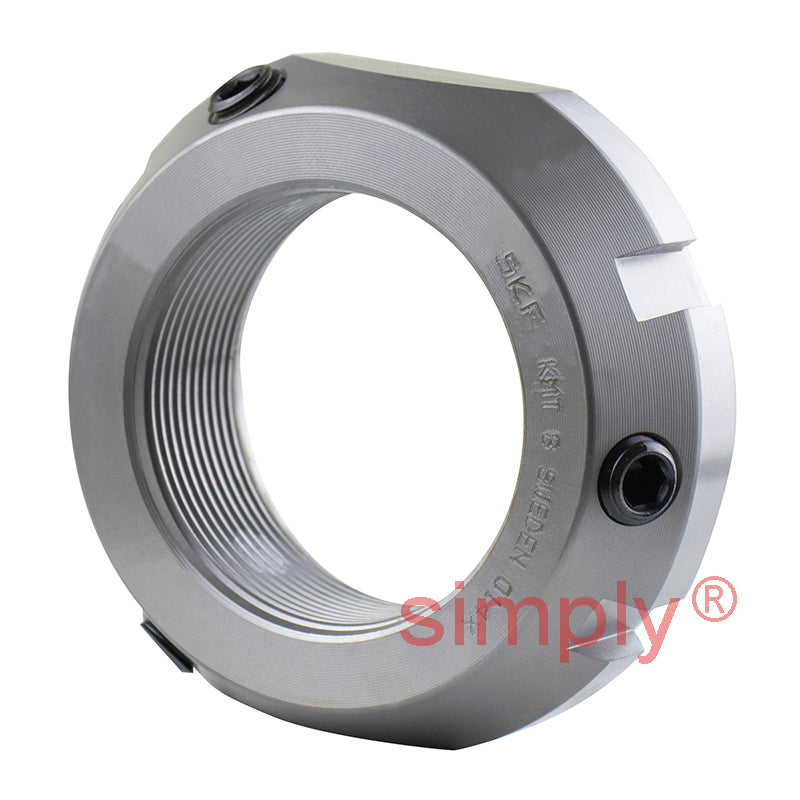

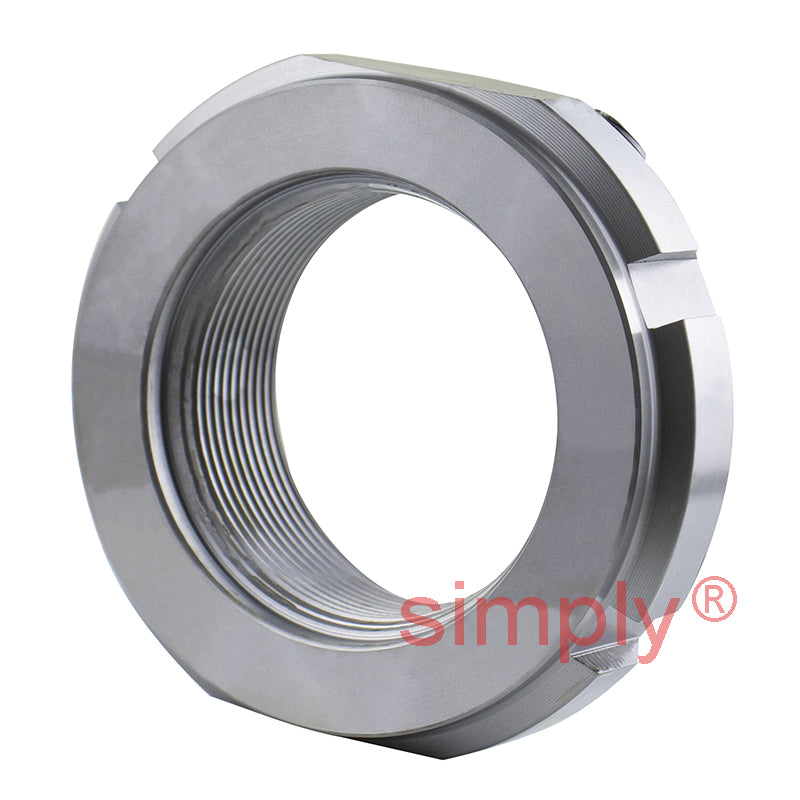

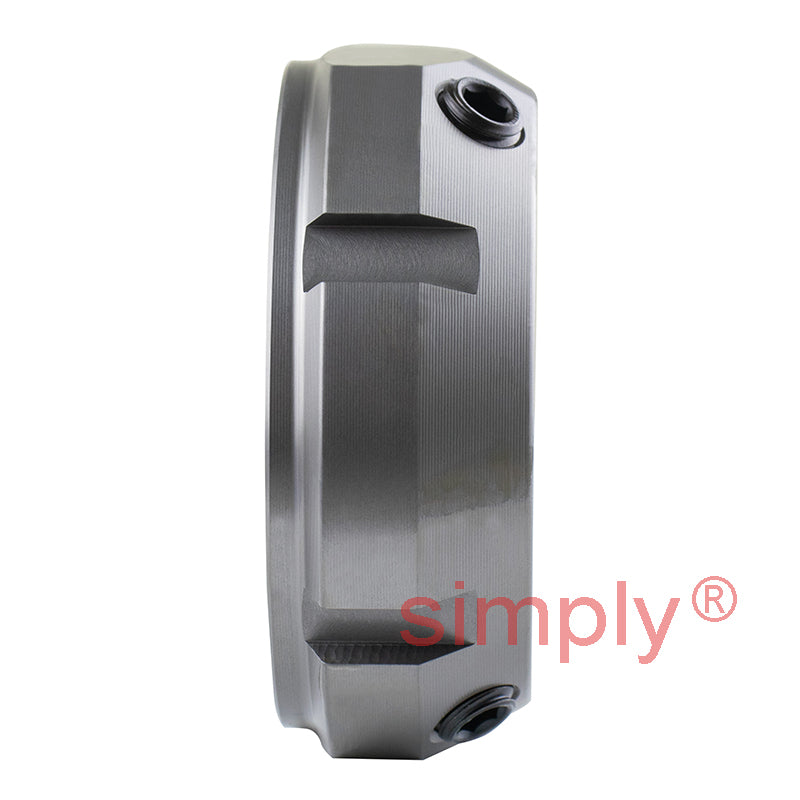

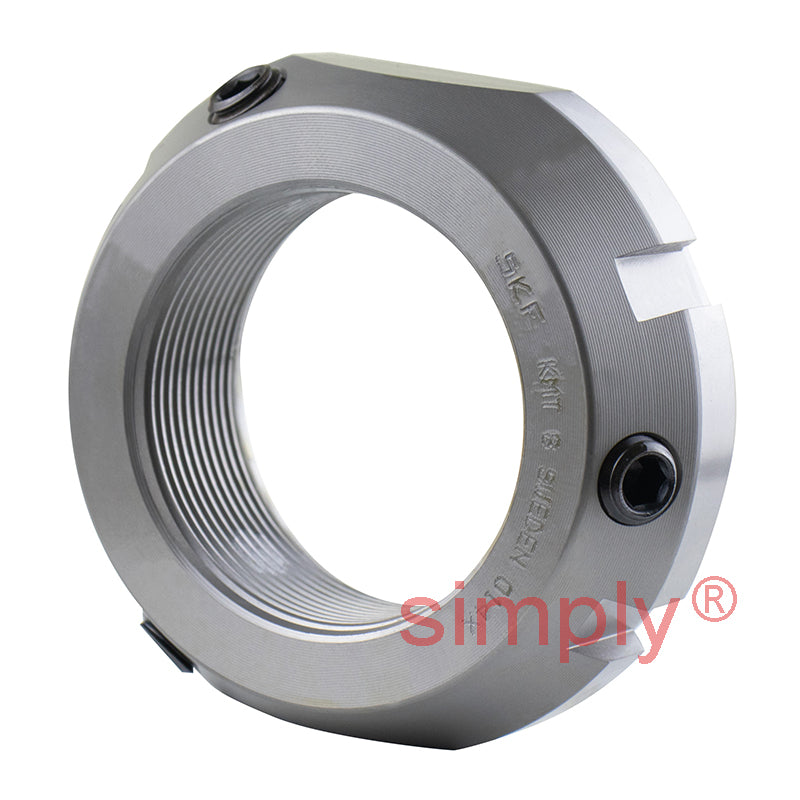

SKF KMT8 Precision Lock Nut with Locking Pins M40x1.5mm
SKF KMT8 Precision Lock Nut with Locking Pins M40x1.5mm
Regular price
£72.37
ex VAT£86.84inc. VAT
Regular price
Sale price
£72.37
ex VAT£86.84
inc. VAT
In stock
Price Break
10+
£64.41
19+
£60.79
29+
£60.07
39+
£59.34
49+
£58.62
74+
£57.89
99+
£54.28
199+
£53.55
249+
£52.83
499+
£52.10
999+
£50.66
Share this product
Description
Description
|
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M40x1.5
Technical
Technical
| d1 | 54mm |
|---|---|
| d2 | 65mm |
| d3 | 59mm |
| d4 | 42mm |
| B | 22mm |
| b | 6mm |
| h | 2.5mm |
| M | 60mm |
| Axial load capacity | 210 kN |
| Loosening torque | 80 Nm |
| Weight | 0.3 kg |
| G | M40x1.5 |
| Spanner | HN8/9 |
| Grub screw | M8 |
| Screw torque | 18 Nm |
