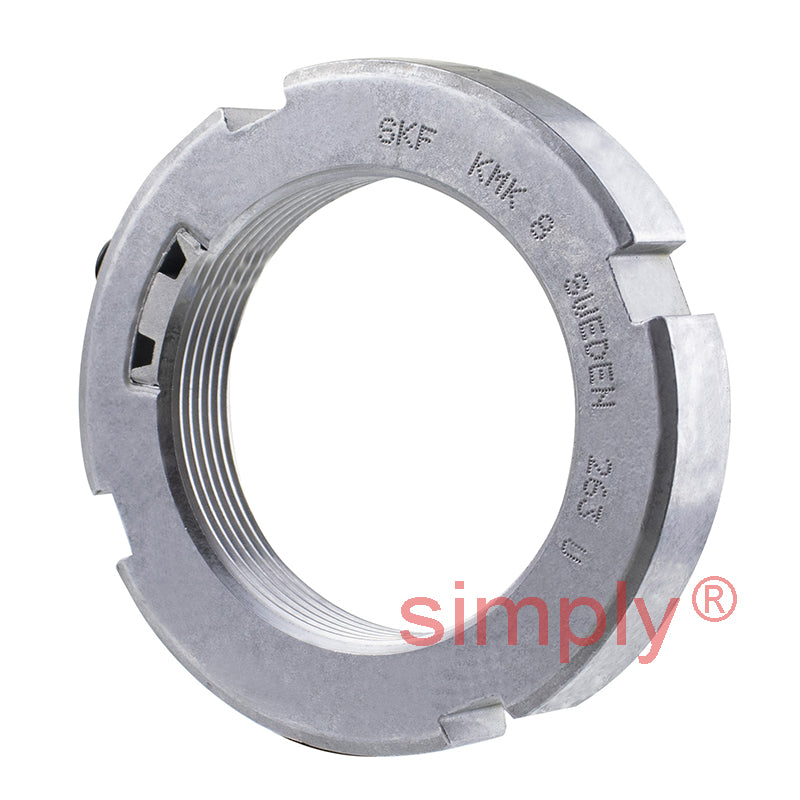

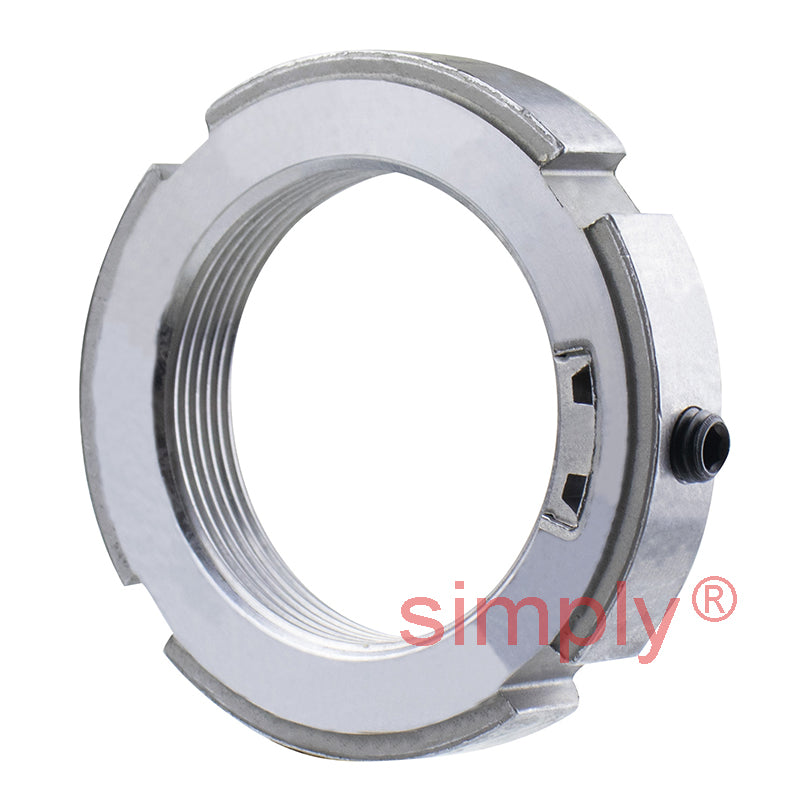

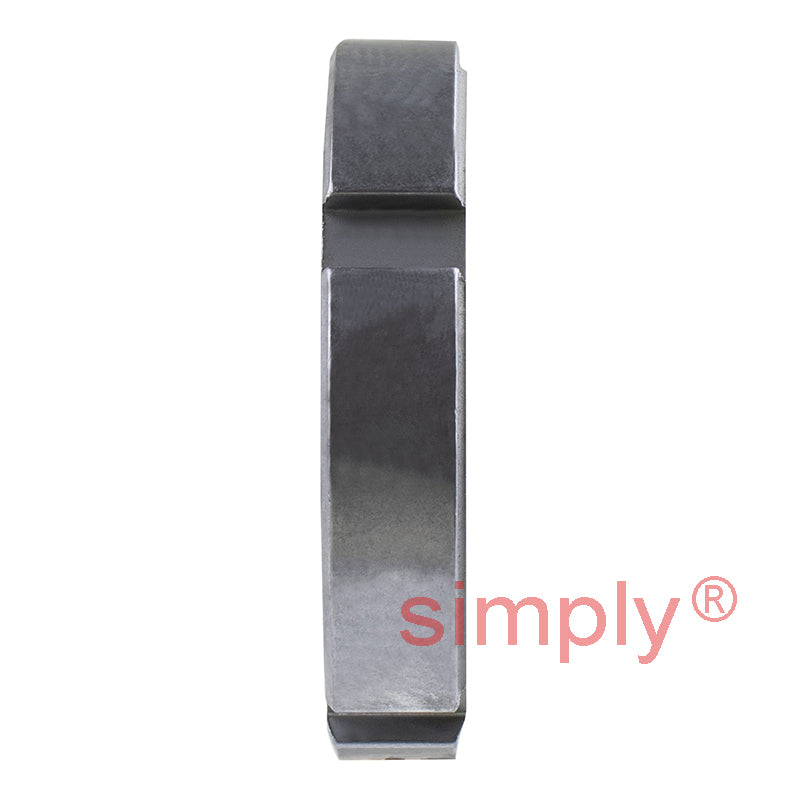

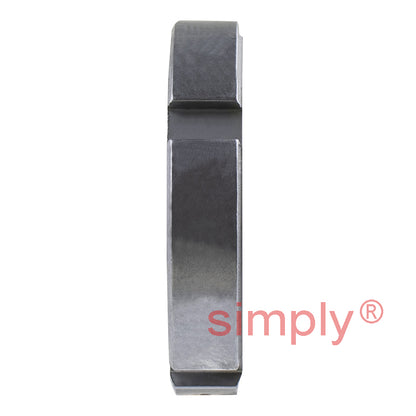

SKF KMK8 Lock Nut with Integral Locking Device M40x1.5mm
SKF KMK8 Lock Nut with Integral Locking Device M40x1.5mm
Regular price
£46.11
ex VAT£55.33inc. VAT
Regular price
Sale price
£46.11
ex VAT£55.33
inc. VAT
In stock
Price Break
10+
£41.04
19+
£38.73
29+
£38.27
39+
£37.81
49+
£37.35
74+
£36.89
99+
£34.58
199+
£34.12
249+
£33.66
499+
£33.20
999+
£32.28
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M40x1.5
Technical
Technical
| d1 | 53mm |
|---|---|
| d3 | 58mm |
| B | 11mm |
| b | 6mm |
| h | 2.5mm |
| Axial load capacity | 62 kN |
| Loosening torque | 67 Nm |
| Weight | 0.11 kg |
| G | M40x1.5 |
| Designation | KMK8 |
| Locking device | HN8 |
| Grub screw | M6 |
| Grub screw torque | 8 Nm |
