SKU: KMK7-SKF

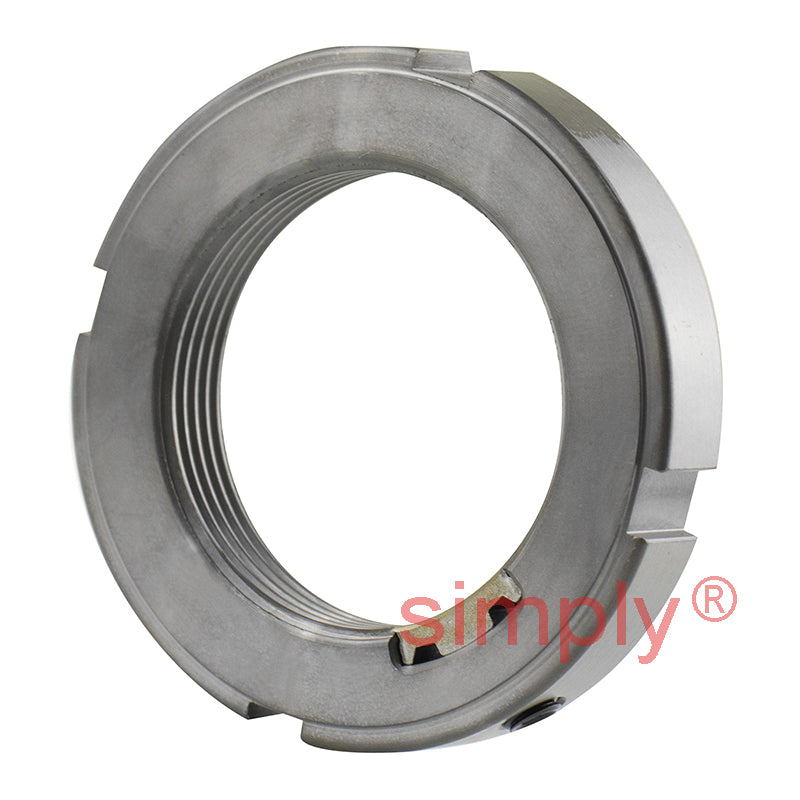

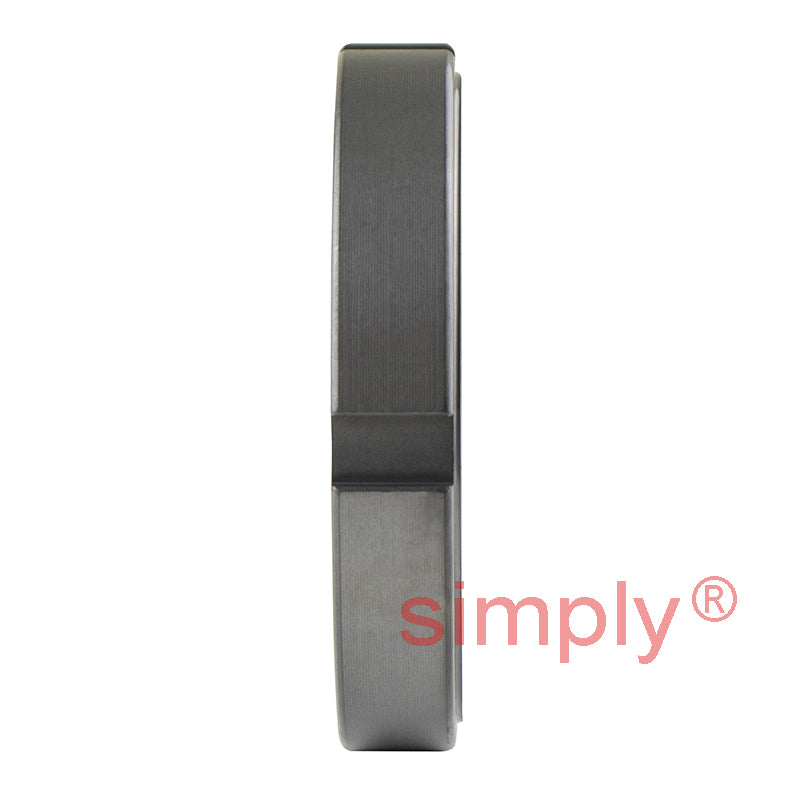

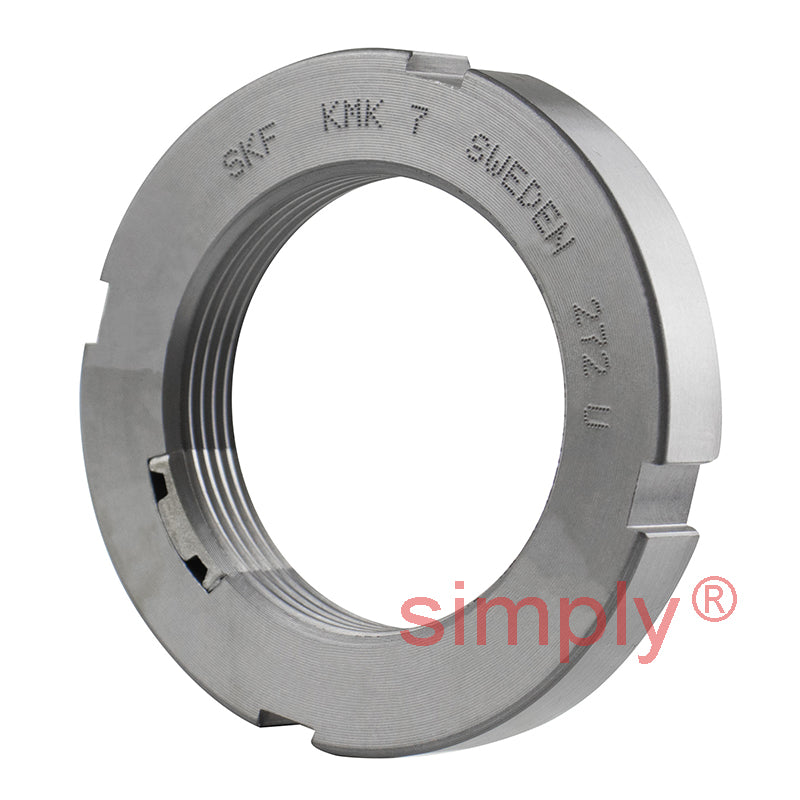

SKF KMK7 Lock Nut with Integral Locking Device M35x1.5mm
SKF KMK7 Lock Nut with Integral Locking Device M35x1.5mm
Regular price
£43.20
ex VAT£51.84inc. VAT
Regular price
Sale price
£43.20
ex VAT£51.84
inc. VAT
In stock
Price Break
10+
£38.45
19+
£36.29
29+
£35.86
39+
£35.42
49+
£34.99
74+
£34.56
99+
£32.40
199+
£31.97
249+
£31.54
499+
£31.10
999+
£30.24
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M35x1.5
Technical
Technical
| d1 | 48mm |
|---|---|
| d3 | 52mm |
| B | 9mm |
| b | 5mm |
| h | 2mm |
| Axial load capacity | 50 kN |
| Loosening torque | 40 Nm |
| Weight | 0.07 kg |
| G | M35x1.5 |
| Designation | KMK7 |
| Locking device | HN7 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
