SKU: KMK5-SKF

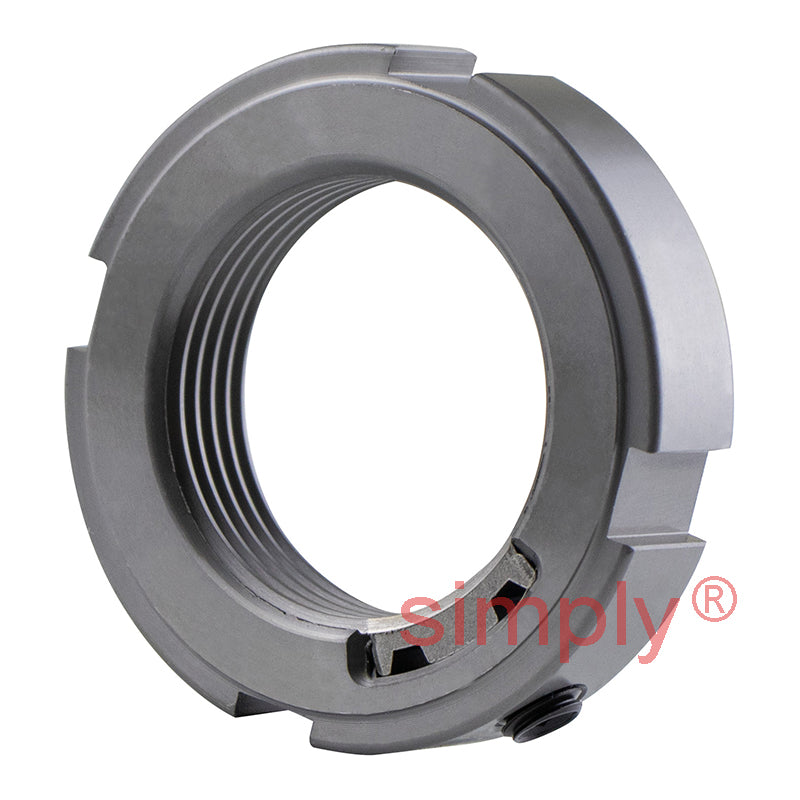

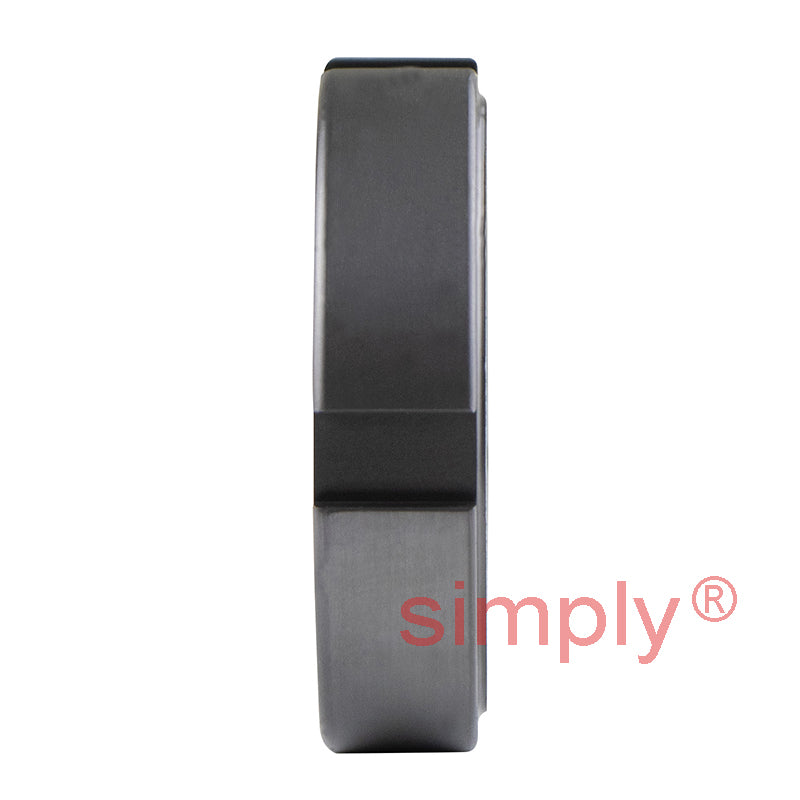

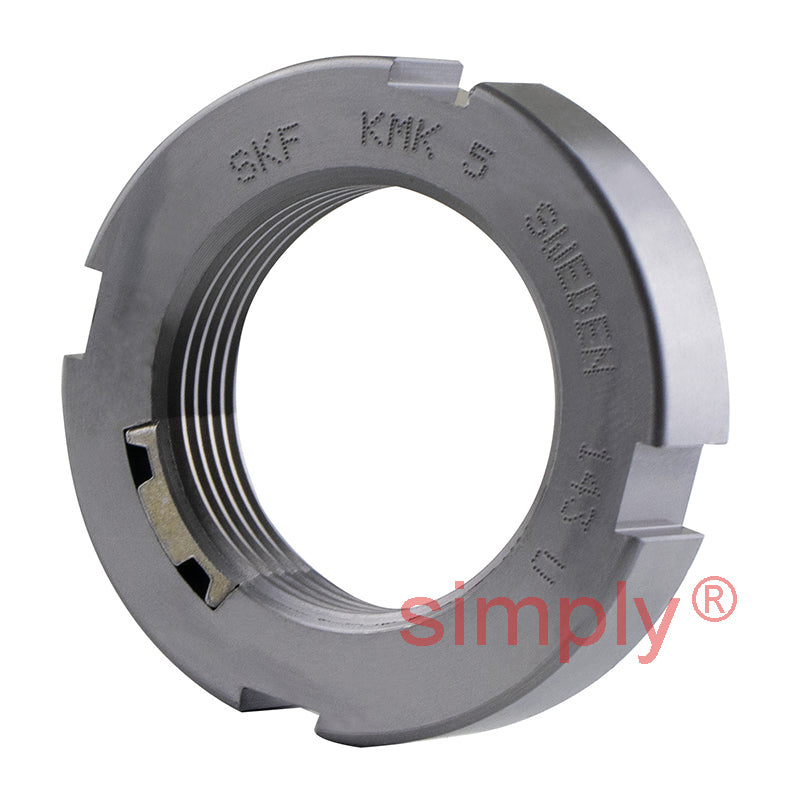

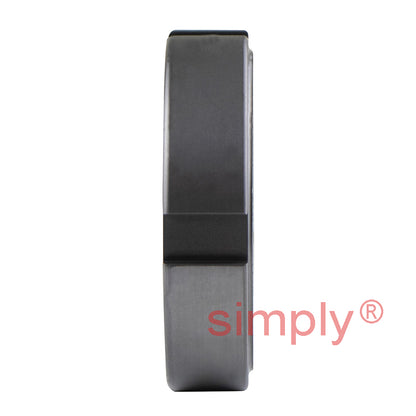

SKF KMK5 Lock Nut with Integral Locking Device M25x1.5mm
SKF KMK5 Lock Nut with Integral Locking Device M25x1.5mm
Regular price
£38.28
ex VAT£45.94inc. VAT
Regular price
Sale price
£38.28
ex VAT£45.94
inc. VAT
In stock
Price Break
10+
£34.07
19+
£32.16
29+
£31.77
39+
£31.39
49+
£31.01
74+
£30.62
99+
£28.71
199+
£28.33
249+
£27.94
499+
£27.56
999+
£26.80
Couldn't load pickup availability
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M25x1.5
Technical
Technical
| d1 | 34mm |
|---|---|
| d3 | 38mm |
| B | 9mm |
| b | 5mm |
| h | 2mm |
| Axial load capacity | 31.5 kN |
| Loosening torque | 29 Nm |
| Weight | 0.03 kg |
| G | M25x1.5 |
| Designation | KMK5 |
| Locking device | HN5 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
