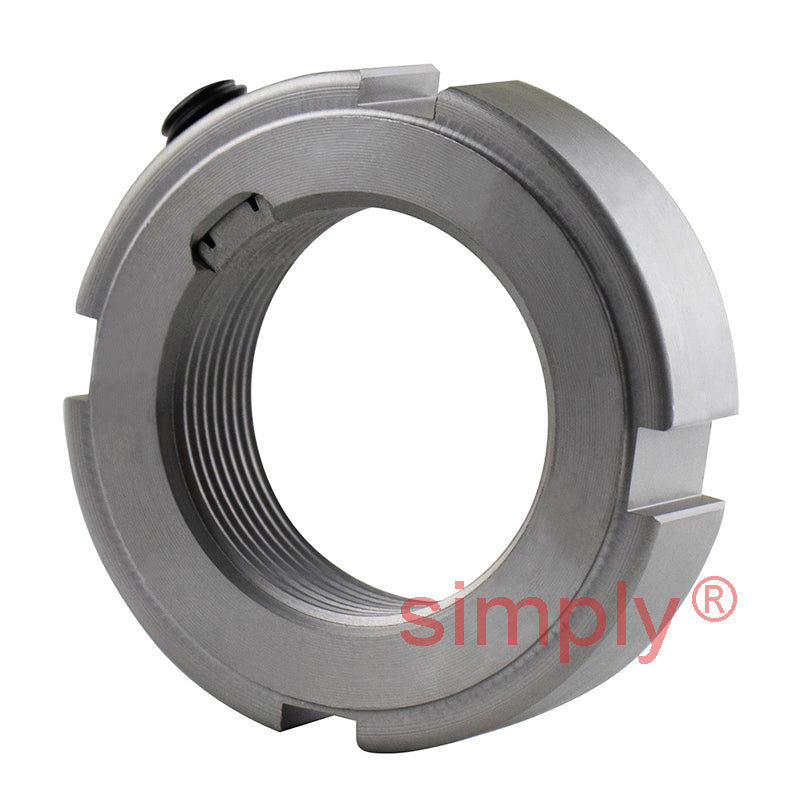

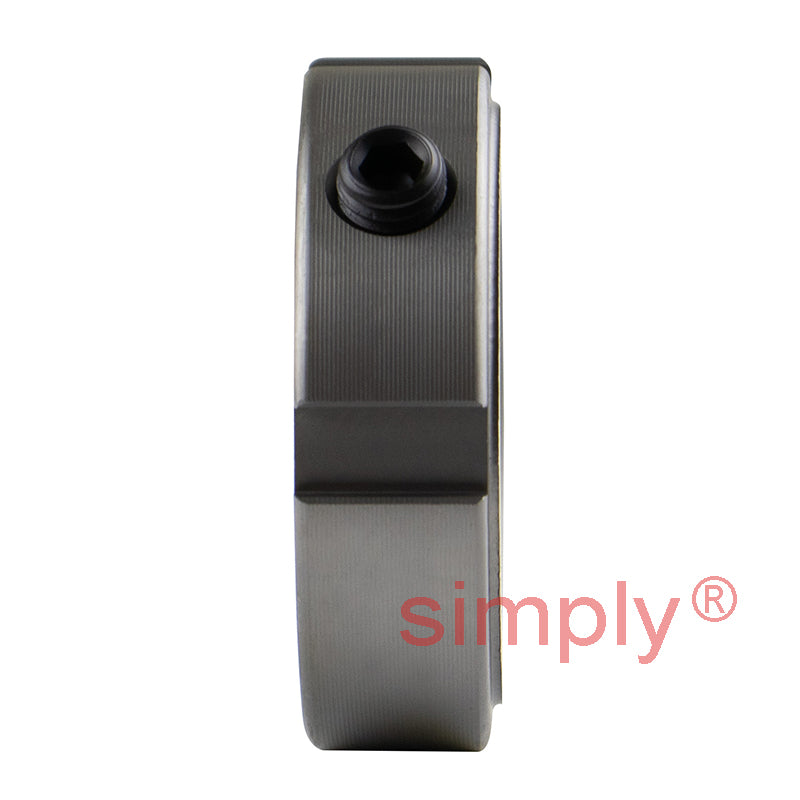

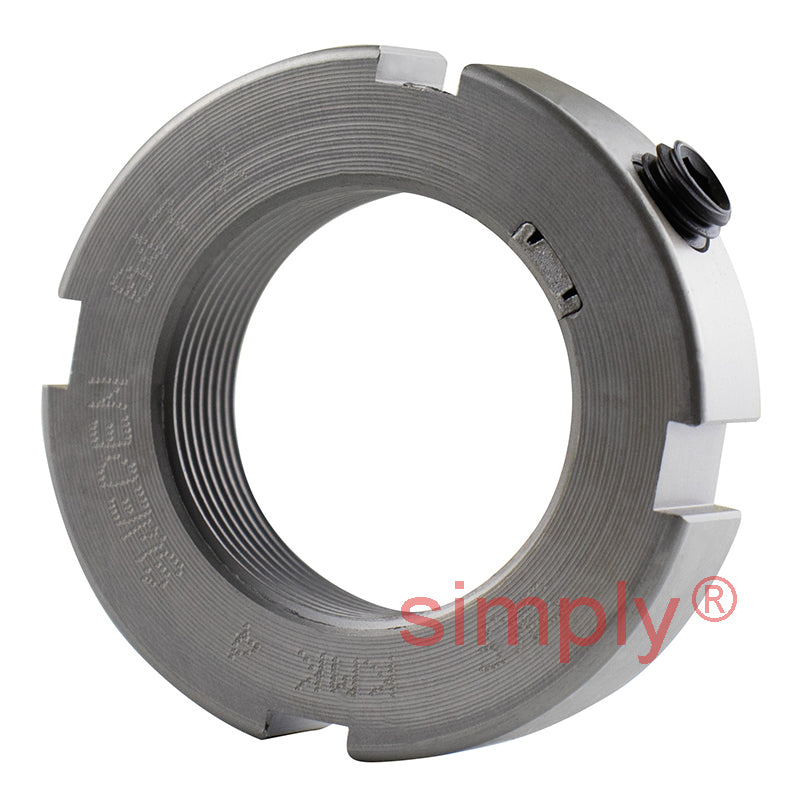

SKF KMK4 Lock Nut with Integral Locking Device M20x1mm
SKF KMK4 Lock Nut with Integral Locking Device M20x1mm
Regular price
£37.84
ex VAT£45.41inc. VAT
Regular price
Sale price
£37.84
ex VAT£45.41
inc. VAT
In stock
Price Break
10+
£33.68
19+
£31.79
29+
£31.41
39+
£31.03
49+
£30.65
74+
£30.27
99+
£28.38
199+
£28.00
249+
£27.63
499+
£27.25
999+
£26.49
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M20x1
Technical
Technical
| d1 | 28mm |
|---|---|
| d3 | 32mm |
| B | 9mm |
| b | 4mm |
| h | 2mm |
| Axial load capacity | 24 kN |
| Loosening torque | 16 Nm |
| Weight | 0.03 kg |
| G | M20x1 |
| Designation | KMK4 |
| Locking device | HN4 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
