SKU: KMK20-SKF

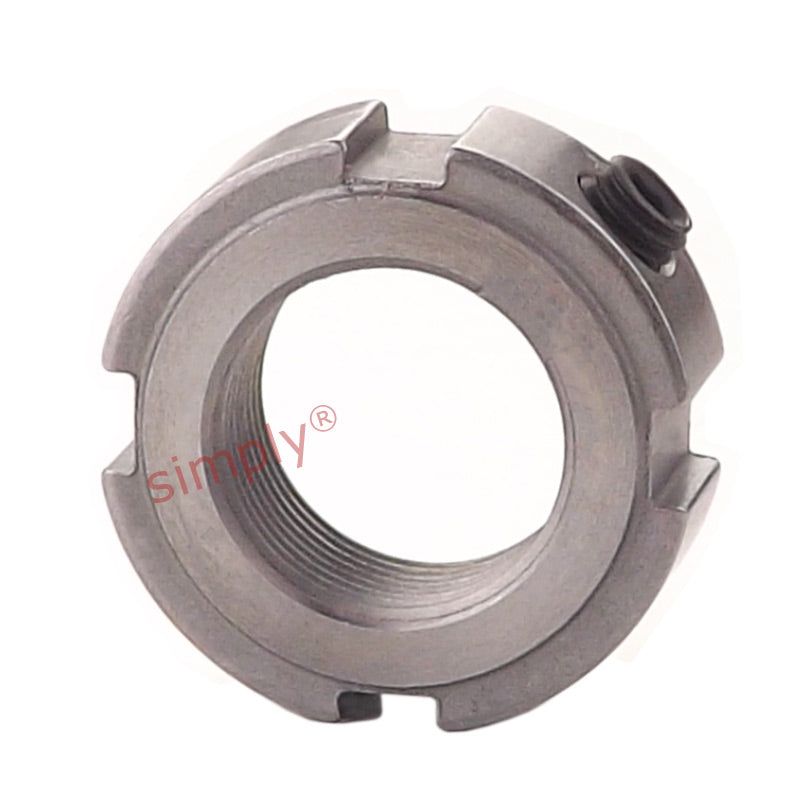

SKF KMK20 Lock Nut with Integral Locking Device M100x2mm
SKF KMK20 Lock Nut with Integral Locking Device M100x2mm
Regular price
£117.15
ex VAT£140.58inc. VAT
Regular price
Sale price
£117.15
ex VAT£140.58
inc. VAT
Low stock
Price Break
10+
£104.26
19+
£98.41
29+
£97.23
39+
£96.06
49+
£94.89
74+
£93.72
99+
£87.86
199+
£86.69
249+
£85.52
499+
£84.35
999+
£82.01
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M100x2
Technical
Technical
| d1 | 122mm |
|---|---|
| d3 | 130mm |
| B | 20mm |
| b | 10mm |
| h | 4mm |
| Axial load capacity | 255 kN |
| Loosening torque | 472 Nm |
| Weight | 0.8 kg |
| G | M100x2 |
| Designation | KMK20 |
| Locking device | HN20 |
| Grub screw | M10 |
| Grub screw torque | 35 Nm |
