SKU: KMK2-SKF

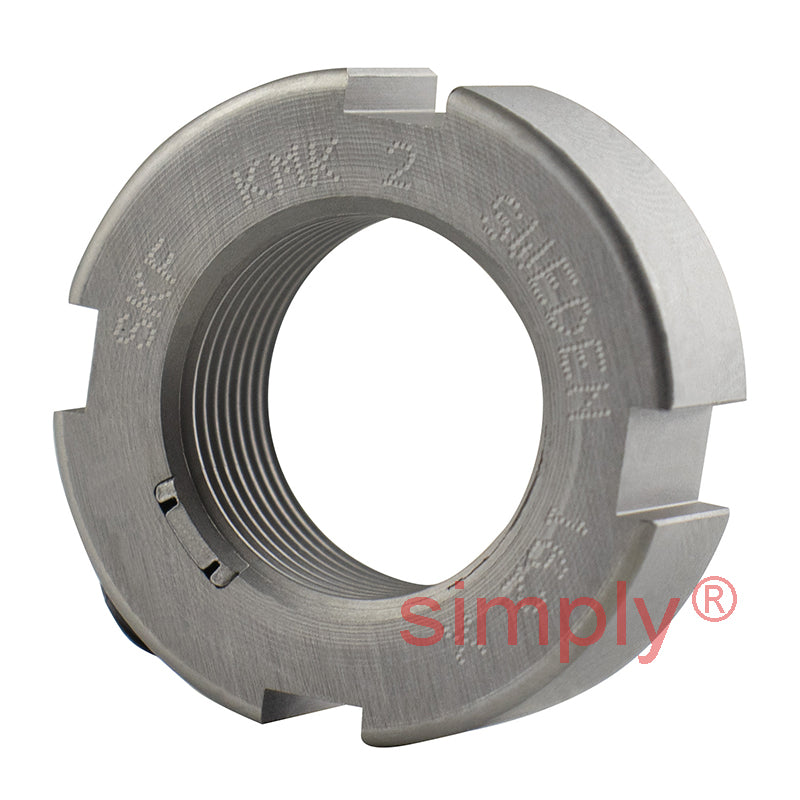

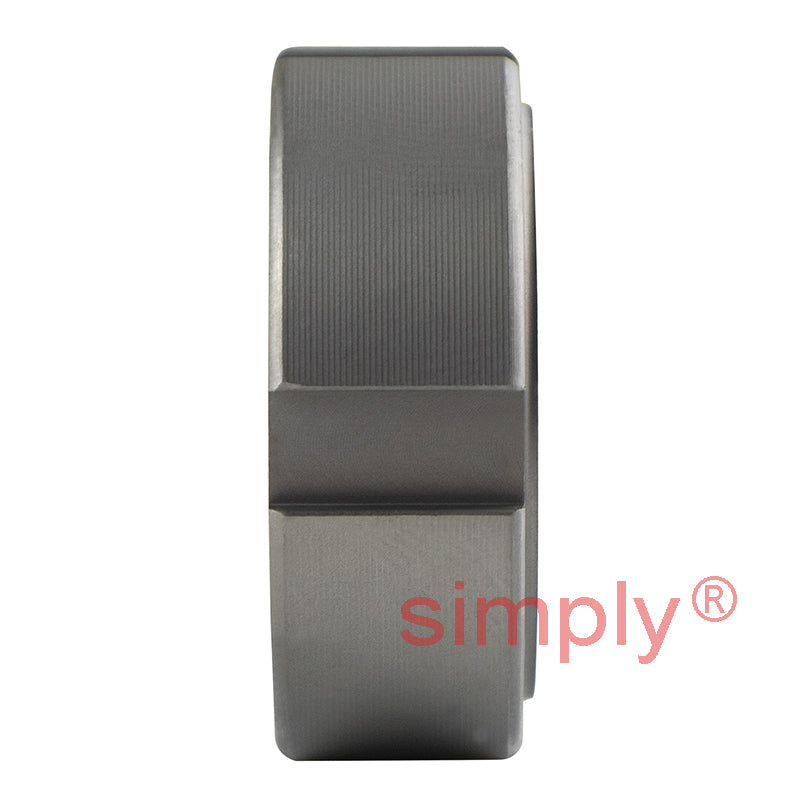

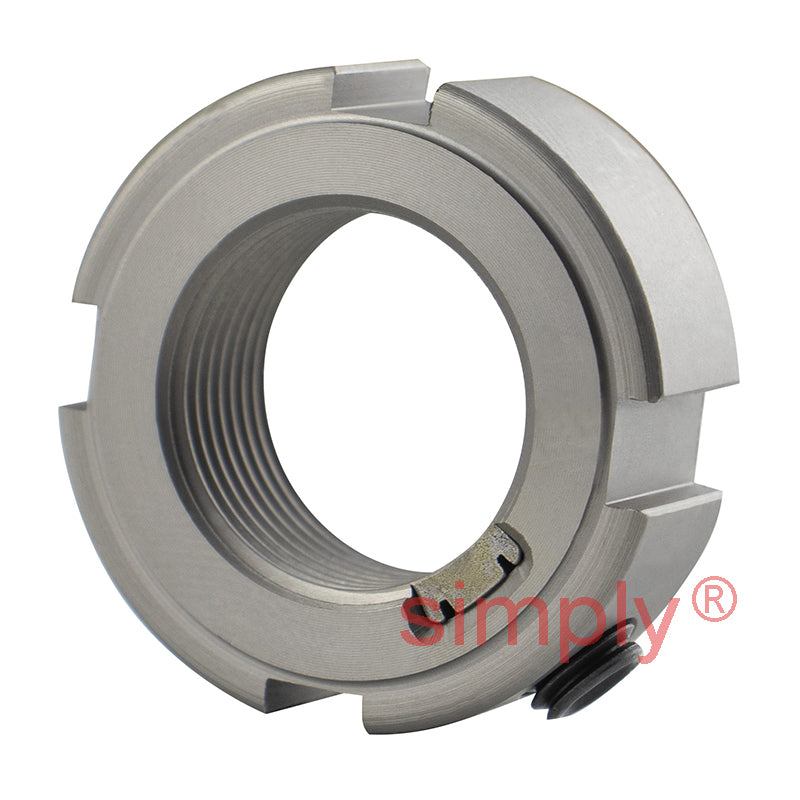

SKF KMK2 Lock Nut with Integral Locking Device M15x1mm
SKF KMK2 Lock Nut with Integral Locking Device M15x1mm
Regular price
£30.68
ex VAT£36.82inc. VAT
Regular price
Sale price
£30.68
ex VAT£36.82
inc. VAT
In stock
Price Break
10+
£27.31
19+
£25.77
29+
£25.47
39+
£25.16
49+
£24.85
74+
£24.55
99+
£23.01
199+
£22.71
249+
£22.40
499+
£22.09
999+
£21.48
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M15x1
Technical
Technical
| d1 | 21mm |
|---|---|
| d3 | 25mm |
| B | 9mm |
| b | 4mm |
| h | 2mm |
| Axial load capacity | 14.6 kN |
| Loosening torque | 12 Nm |
| Weight | 0.021 kg |
| G | M15x1 |
| Designation | KMK2 |
| Locking device | HN2 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
