SKU: KMK14-SKF

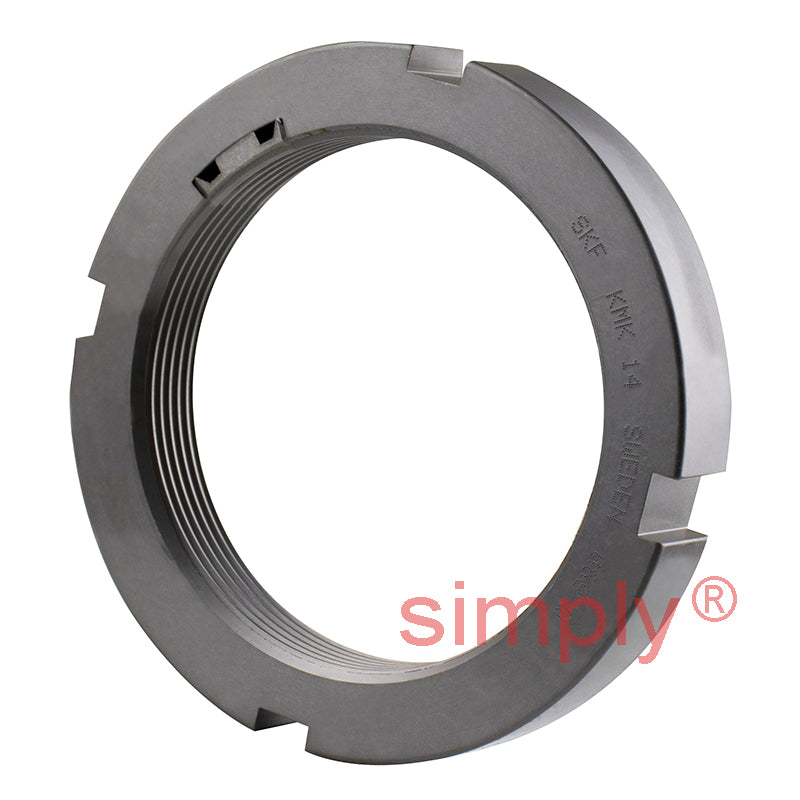

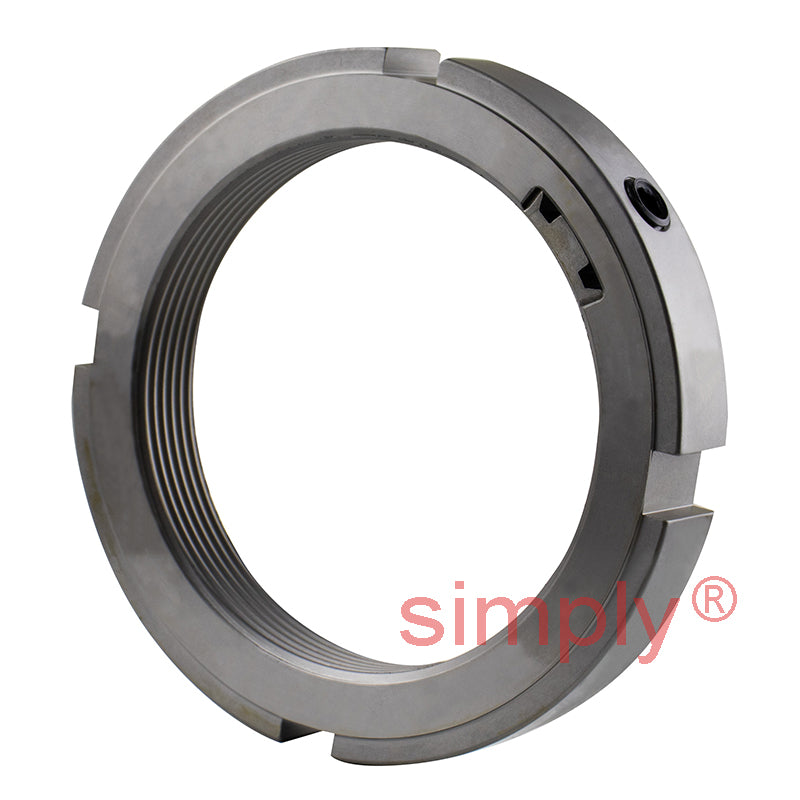

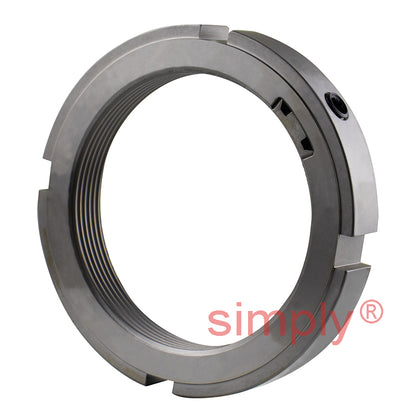

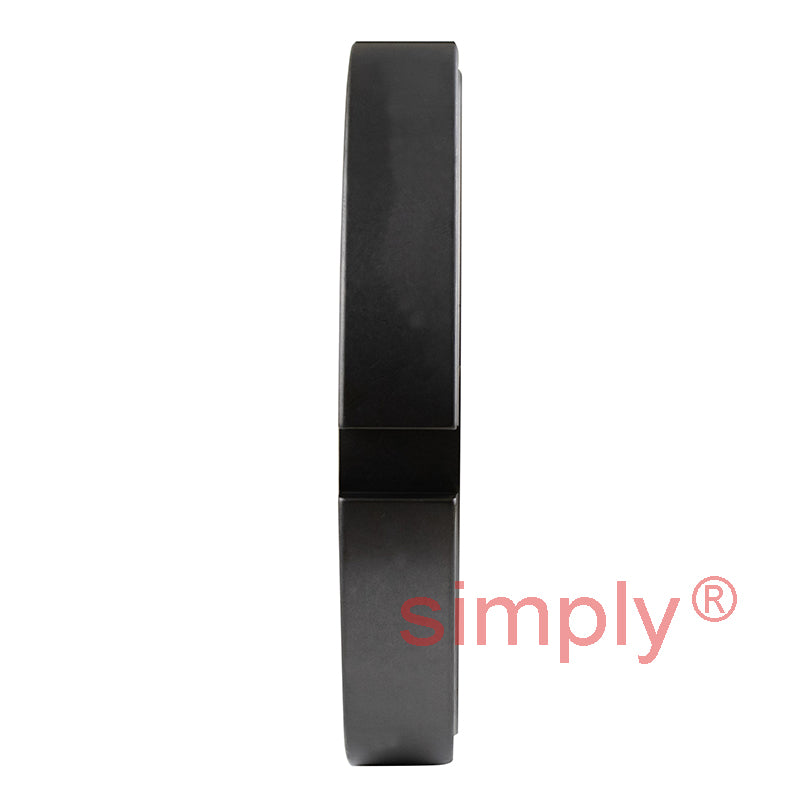

SKF KMK14 Lock Nut with Integral Locking Device M70x2mm
SKF KMK14 Lock Nut with Integral Locking Device M70x2mm
Regular price
£84.50
ex VAT£101.40inc. VAT
Regular price
Sale price
£84.50
ex VAT£101.40
inc. VAT
In stock
Price Break
10+
£75.21
19+
£70.98
29+
£70.14
39+
£69.29
49+
£68.45
74+
£67.60
99+
£63.38
199+
£62.53
249+
£61.69
499+
£60.84
999+
£59.15
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M70x2
Technical
Technical
| d1 | 85mm |
|---|---|
| d3 | 92mm |
| B | 14mm |
| b | 8mm |
| h | 3.5mm |
| Axial load capacity | 118 kN |
| Loosening torque | 219 Nm |
| Weight | 0.28 kg |
| G | M70x2 |
| Designation | KMK14 |
| Locking device | HN14 |
| Grub screw | M8 |
| Grub screw torque | 18 Nm |
