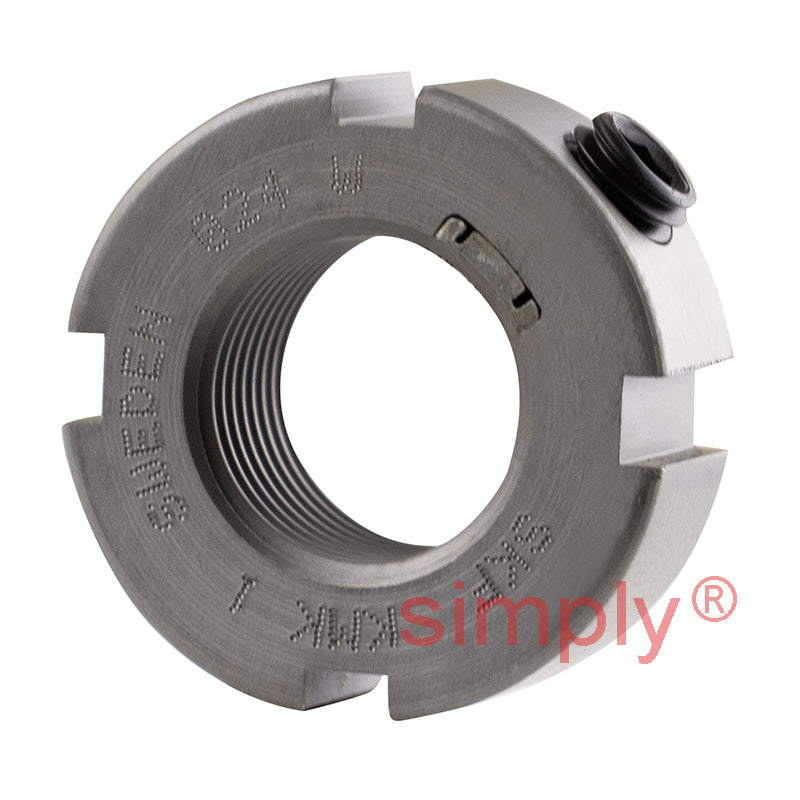

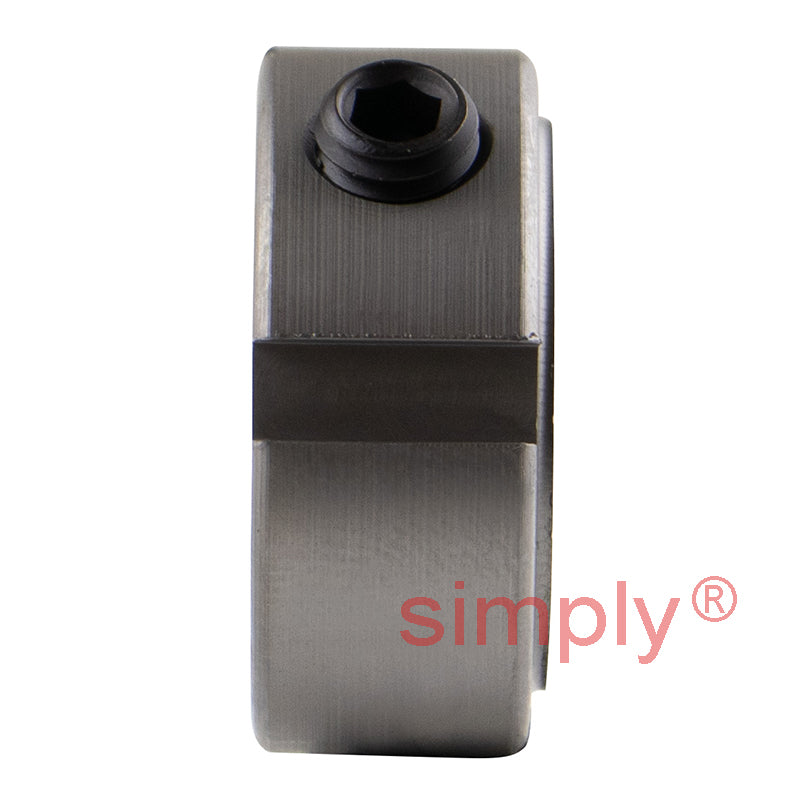

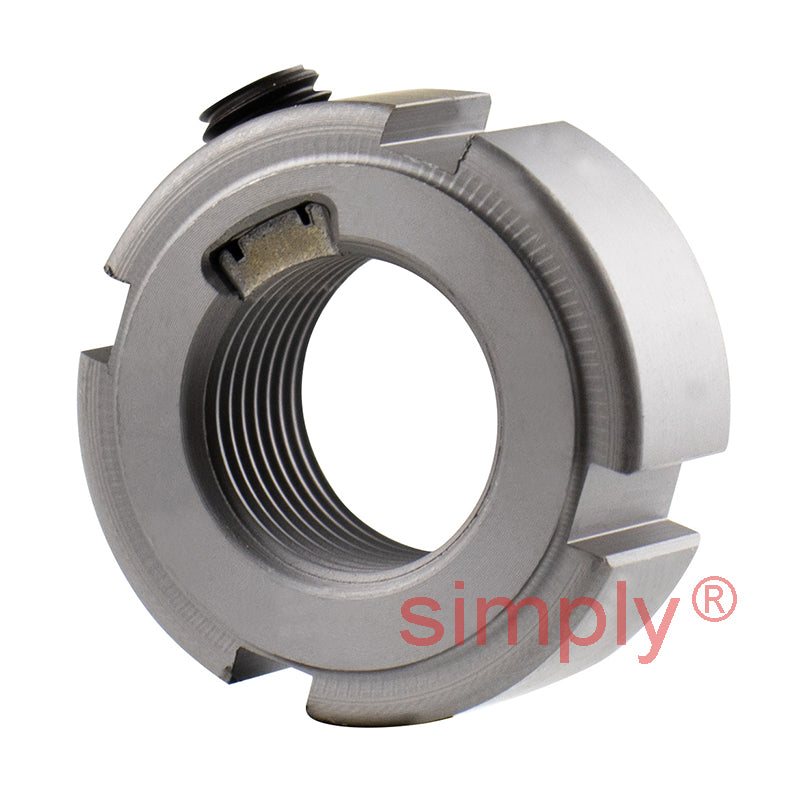

SKF KMK1 Lock Nut with Integral Locking Device M12x1mm
SKF KMK1 Lock Nut with Integral Locking Device M12x1mm
Regular price
£52.23
ex VAT£62.68inc. VAT
Regular price
Sale price
£52.23
ex VAT£62.68
inc. VAT
In stock
Price Break
10+
£46.49
19+
£43.87
29+
£43.35
39+
£42.83
49+
£42.31
74+
£41.78
99+
£39.17
199+
£38.65
249+
£38.13
499+
£37.61
999+
£36.56
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M12x1
Technical
Technical
| d1 | 18mm |
|---|---|
| d3 | 22mm |
| B | 9mm |
| b | 3mm |
| h | 2mm |
| Axial load capacity | 11.8 kN |
| Loosening torque | 9 Nm |
| Weight | 0.018 kg |
| G | M12x1 |
| Designation | KMK1 |
| Locking device | HN1 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
