SKF KMK0 Lock Nut with Integral Locking Device M10x0.75mm
SKF KMK0 Lock Nut with Integral Locking Device M10x0.75mm
Regular price
£53.13
ex VAT£63.76inc. VAT
Regular price
Sale price
£53.13
ex VAT£63.76
inc. VAT
In stock
Price Break
10+
£47.29
19+
£44.63
29+
£44.10
39+
£43.57
49+
£43.04
74+
£42.51
99+
£39.85
199+
£39.32
249+
£38.79
499+
£38.26
999+
£37.19
Share this product
Description
Description
|

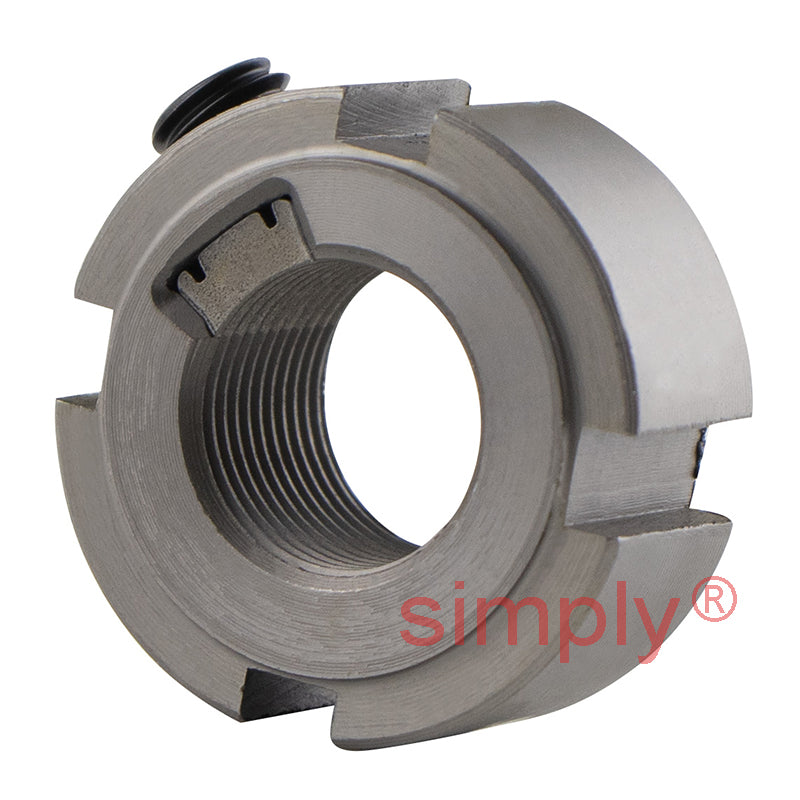

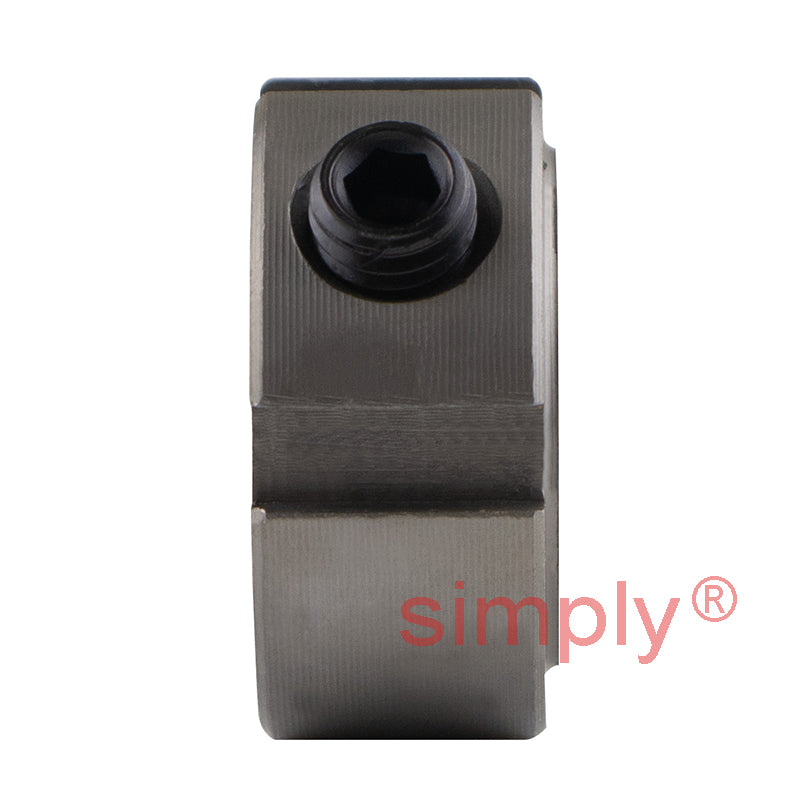

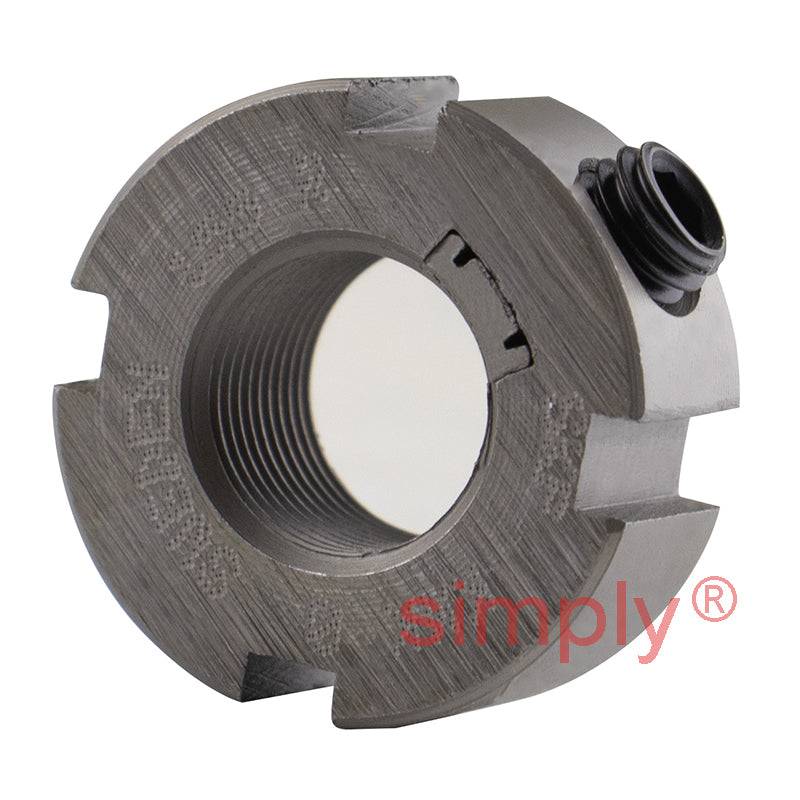

SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M10x0.75
Technical
Technical
| d1 | 16mm |
|---|---|
| d3 | 20mm |
| B | 9mm |
| b | 3mm |
| h | 2mm |
| Axial load capacity | 9.8 kN |
| Loosening torque | 6 Nm |
| Weight | 0.016 kg |
| G | M10x0.75 |
| Designation | KMK0 |
| Locking device | HN0 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
