SKU: KMFE14-SKF

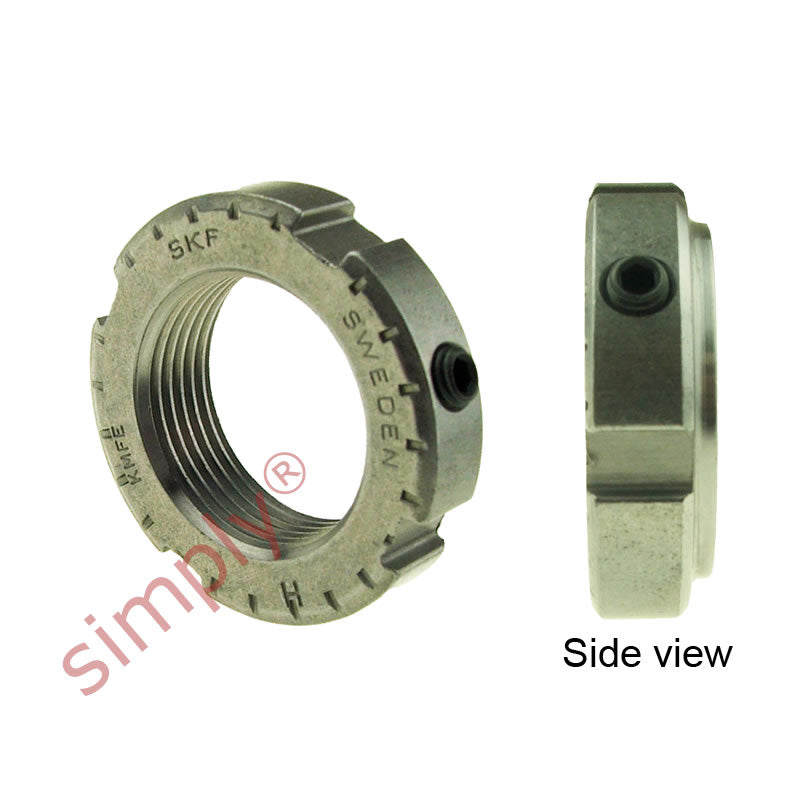

SKF KMFE14 Lock Nut with Locking Screw M70x2mm
SKF KMFE14 Lock Nut with Locking Screw M70x2mm
Regular price
£41.76
ex VAT£50.11inc. VAT
Regular price
Sale price
£41.76
ex VAT£50.11
inc. VAT
In stock
Price Break
10+
£37.16
19+
£35.08
29+
£34.66
39+
£34.24
49+
£33.82
74+
£33.41
99+
£31.32
199+
£30.90
249+
£30.48
499+
£30.07
999+
£29.23
Share this product
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M70x2
Technical
Technical
| d1 | 79mm |
|---|---|
| d3 | 92mm |
| B | 15mm |
| B1 | 12mm |
| b | 8mm |
| h | 3.5mm |
| Axial load capacity | 118 kN |
| Looseing torque | 140 Nm |
| Weight | 0.26 kg |
| G | M70x2 |
| Designation | KMFE14 |
| Spanner | HN14 |
| Grub | M6 |
| Screw tightening torque | 8 Nm |
