SKU: KMFE13-SKF

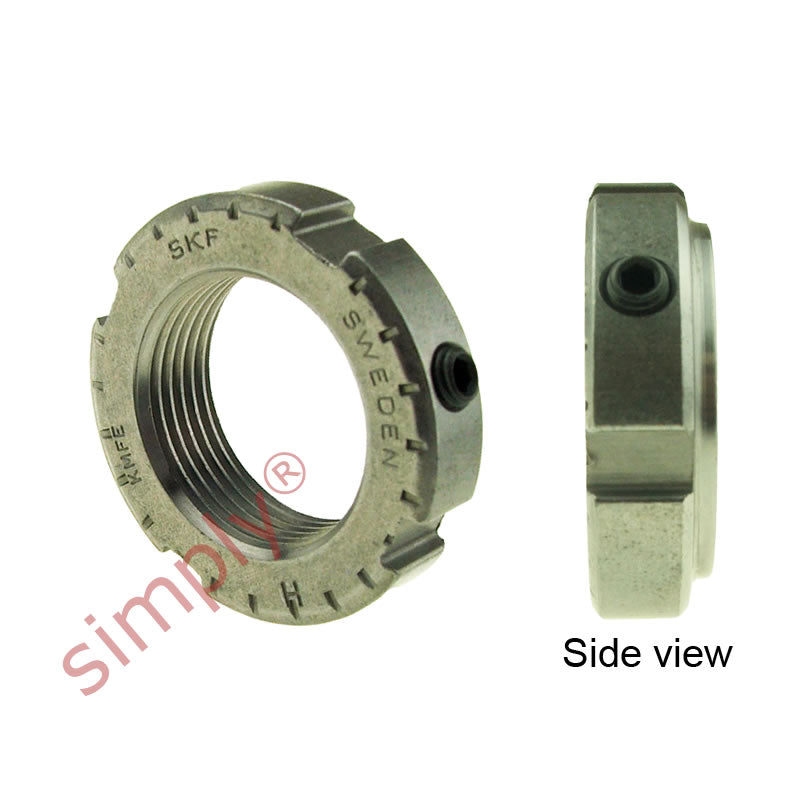

SKF KMFE13 Lock Nut with Locking Screw M65x2mm
SKF KMFE13 Lock Nut with Locking Screw M65x2mm
Regular price
£21.26
ex VAT£25.51inc. VAT
Regular price
Sale price
£21.26
ex VAT£25.51
inc. VAT
In stock
Price Break
10+
£18.92
19+
£17.86
29+
£17.65
39+
£17.43
49+
£17.22
74+
£17.01
99+
£15.94
199+
£15.73
249+
£15.52
499+
£15.31
999+
£14.88
Share this product
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M65x2
Technical
Technical
| d1 | 76mm |
|---|---|
| d3 | 85mm |
| B | 15mm |
| B1 | 12mm |
| b | 7mm |
| h | 3mm |
| Axial load capacity | 108 kN |
| Looseing torque | 130 Nm |
| Weight | 0.23 kg |
| G | M65x2 |
| Designation | KMFE13 |
| Spanner | HN13 |
| Grub | M6 |
| Screw tightening torque | 8 Nm |
