SKU: KMFE11-SKF

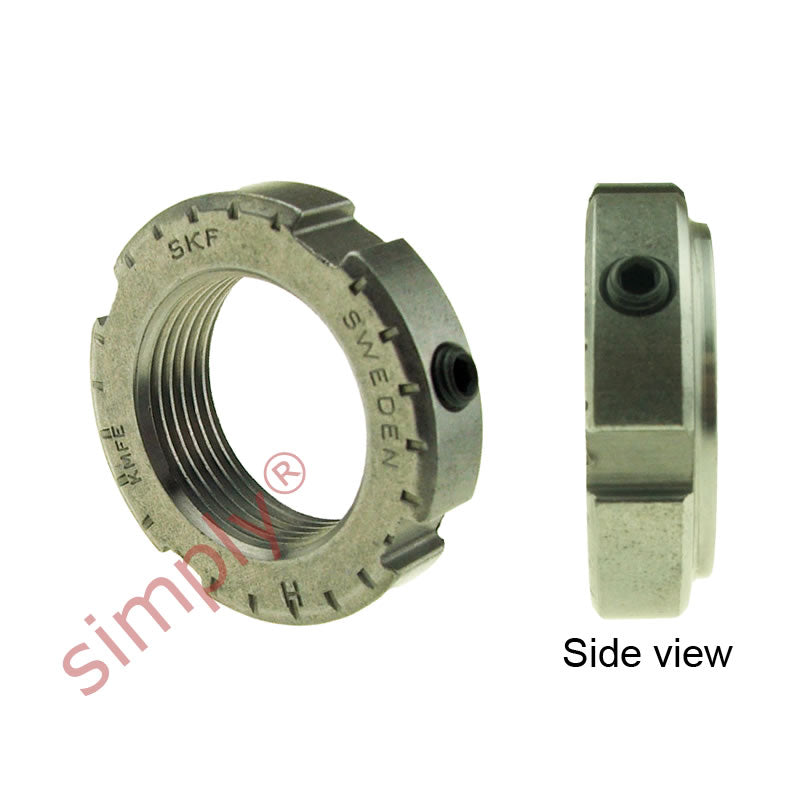

SKF KMFE11 Lock Nut with Locking Screw M55x2mm
SKF KMFE11 Lock Nut with Locking Screw M55x2mm
Regular price
£38.27
ex VAT£45.92inc. VAT
Regular price
Sale price
£38.27
ex VAT£45.92
inc. VAT
In stock
Price Break
10+
£34.06
19+
£32.14
29+
£31.76
39+
£31.38
49+
£31.00
74+
£30.61
99+
£28.70
199+
£28.32
249+
£27.93
499+
£27.55
999+
£26.79
Share this product
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M55x2
Technical
Technical
| d1 | 64mm |
|---|---|
| d3 | 75mm |
| B | 14mm |
| B1 | 11mm |
| b | 7mm |
| h | 3mm |
| Axial load capacity | 91.5 kN |
| Looseing torque | 110 Nm |
| Weight | 0.18 kg |
| G | M55x2 |
| Designation | KMFE11 |
| Spanner | HN11 |
| Grub | M6 |
| Screw tightening torque | 8 Nm |
