SKU: KFL003

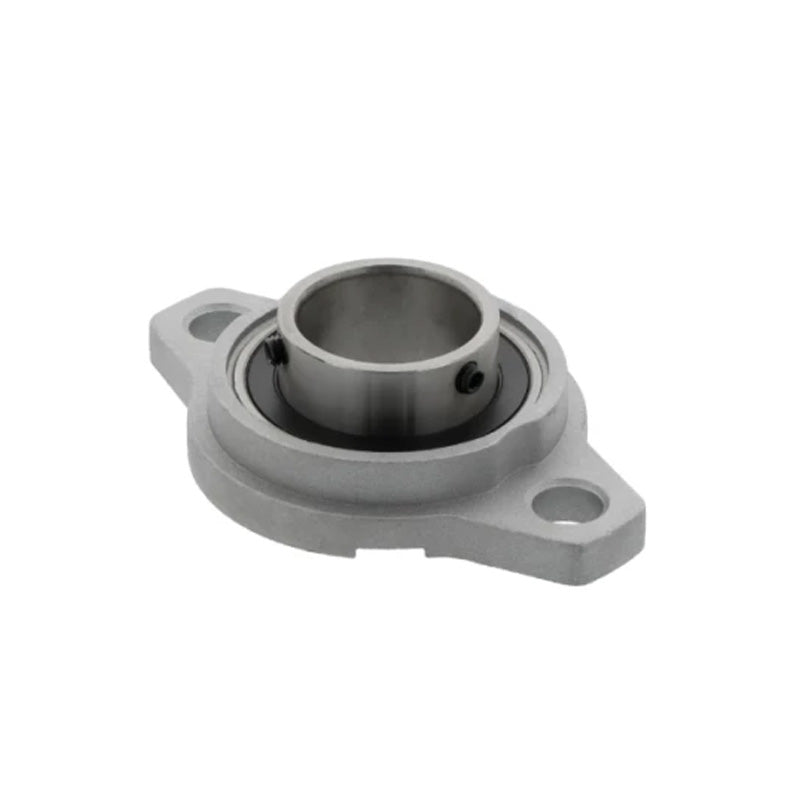

KFL003 Aluminium 2 Bolt Oval Bearing with Grub Screws 17mm Bore
KFL003 Aluminium 2 Bolt Oval Bearing with Grub Screws 17mm Bore
Regular price
£8.29
ex VAT£9.95inc. VAT
Regular price
Sale price
£8.29
ex VAT£9.95
inc. VAT
In stock
Price Break
3+
£7.38
4+
£6.96
9+
£6.88
19+
£6.80
49+
£6.71
99+
£6.63
499+
£6.22
999+
£6.13
1999+
£6.05
2999+
£5.97
4999+
£5.80
Description
Description
|
KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Style:
- KFL
- Bolt Hole Centres:
- 56mm

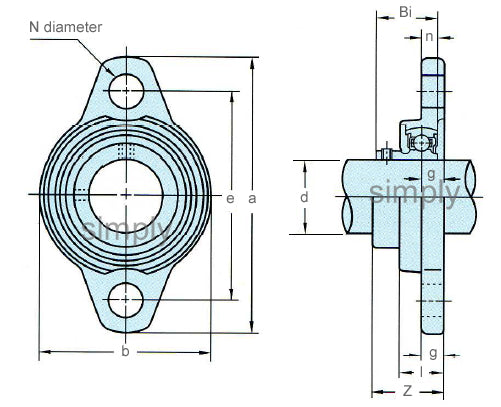

Technical
Technical
| d | 17mm |
|---|---|
| a | 71mm |
| e | 56mm |
| g | 7mm |
| l | 14mm |
| N | 7mm |
| b | 46mm |
| n | 5mm |
| Bi | 17.5mm |
| t | 23mm |
| z | 19.5mm |
| Recommended fixing screw | M6 |
| Weight | 0.14 kg |
| Dynamic load | 5978 N ~ 609.586 kgf |
| Static load | 3283 N ~ 334.773 kgf |
