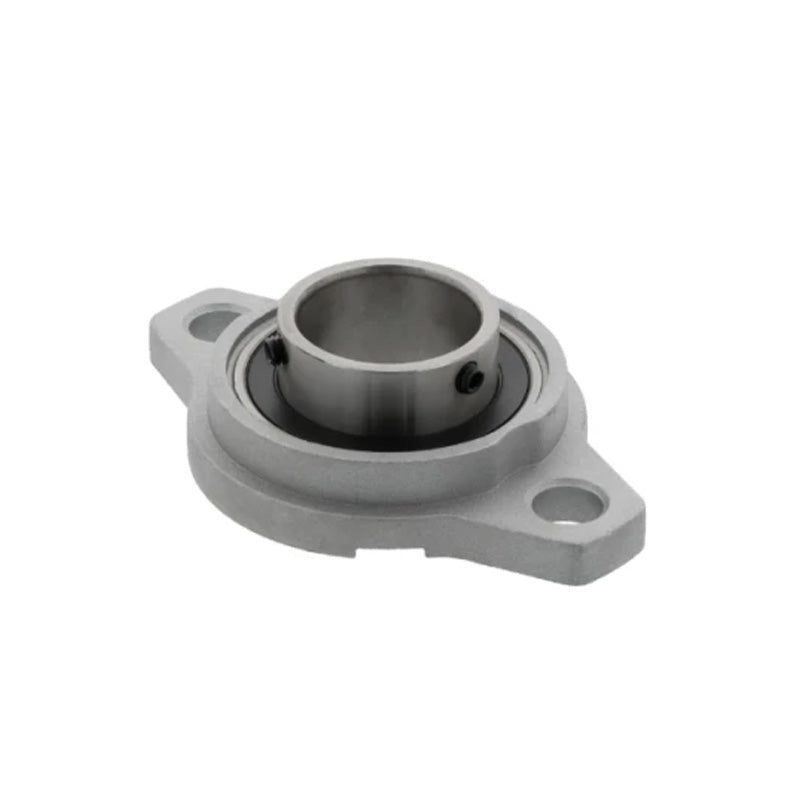

KFL001 Aluminium 2 Bolt Oval Bearing with Grub Screws 12mm Bore
KFL001 Aluminium 2 Bolt Oval Bearing with Grub Screws 12mm Bore
Regular price
£10.05
ex VAT£12.06inc. VAT
Regular price
Sale price
£10.05
ex VAT£12.06
inc. VAT
In stock
Price Break
3+
£8.94
4+
£8.44
9+
£8.34
19+
£8.24
49+
£8.14
99+
£8.04
499+
£7.54
999+
£7.43
1999+
£7.33
2999+
£7.23
4999+
£7.03
Description
Description
|
KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- KFL
- Bolt Hole Centres:
- 48mm
Technical
Technical
| d | 12mm |
|---|---|
| a | 63mm |
| e | 48mm |
| g | 6mm |
| l | 12mm |
| N | 7mm |
| b | 38mm |
| n | 4mm |
| Bi | 14.5mm |
| t | 19.5mm |
| z | 16.5mm |
| Recommended fixing screw | M6 |
| Weight | 0.08 kg |
| Dynamic load | 5096 N ~ 519.647 kgf |
| Static load | 2401 N ~ 244.834 kgf |
