SKU: KBS50-PP-INA
INA KBS50PP Linear Ball Bushing with Contact Seals 50x75x100mm
INA KBS50PP Linear Ball Bushing with Contact Seals 50x75x100mm
Regular price
£202.16
ex VAT£242.59inc. VAT
Regular price
Sale price
£202.16
ex VAT£242.59
inc. VAT
In stock
Price Break
3+
£179.92
5+
£169.81
10+
£167.79
15+
£165.77
20+
£163.75
30+
£161.73
40+
£151.62
50+
£149.60
60+
£147.58
75+
£145.56
100+
£141.51
Description
Description
|
INA KBS..-PP Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 75mm
- Width:
- 100mm
Technical
Technical

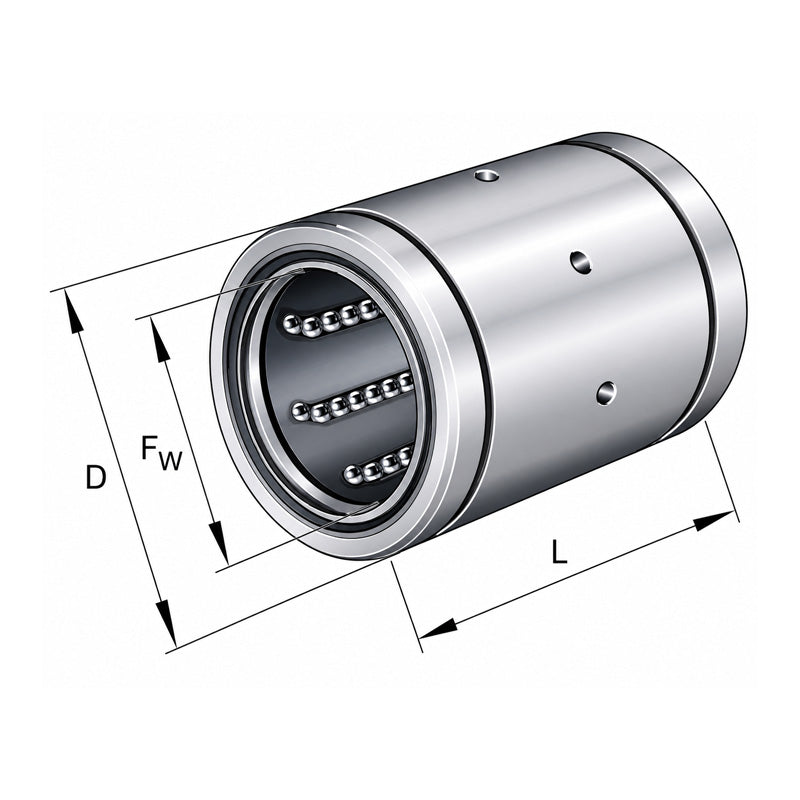

| Fw | 50mm |
|---|---|
| D | 75mm |
| L | 100mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 2.65mm |
| DN | 72mm |
| L2 | 77.3mm |
| Mass | 1 kg |
| Basic dynamic load rating C min | 8700 N |
| Basic static load rating C0 min | 6300 N |
| Basic dynamic load rating C max | 9200 N |
| Basic static load rating C0 max | 8000 N |
