SKU: KBS40-PP-INA
INA KBS40PP Linear Ball Bushing with Contact Seals 40x62x80mm
INA KBS40PP Linear Ball Bushing with Contact Seals 40x62x80mm
Regular price
£128.97
ex VAT£154.76inc. VAT
Regular price
Sale price
£128.97
ex VAT£154.76
inc. VAT
In stock
Price Break
3+
£114.78
5+
£108.33
10+
£107.05
15+
£105.76
20+
£104.47
30+
£103.18
40+
£96.73
50+
£95.44
60+
£94.15
75+
£92.86
100+
£90.28
Description
Description
|
INA KBS..-PP Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 80mm

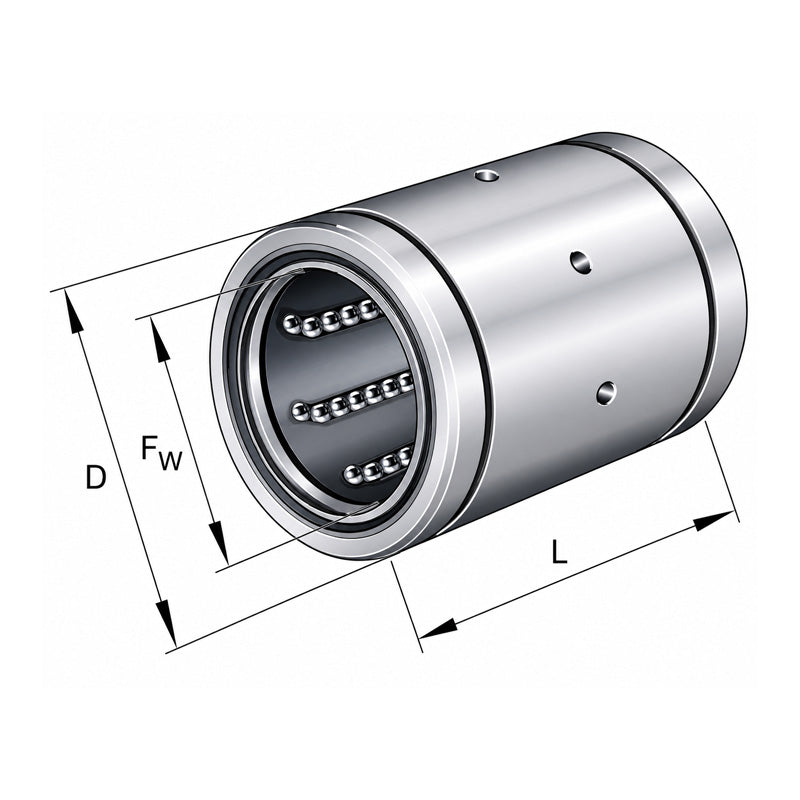

Technical
Technical
| Fw | 40mm |
|---|---|
| D | 62mm |
| L | 80mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 2.15mm |
| DN | 59mm |
| L2 | 60.3mm |
| Mass | 0.6 kg |
| Basic dynamic load rating C min | 6000 N |
| Basic static load rating C0 min | 4400 N |
| Basic dynamic load rating C max | 6400 N |
| Basic static load rating C0 max | 5600 N |
