INA KBS30PP Linear Ball Bushing with Contact Seals 30x47x68mm
INA KBS30PP Linear Ball Bushing with Contact Seals 30x47x68mm
Regular price
£99.76
ex VAT£119.71inc. VAT
Regular price
Sale price
£99.76
ex VAT£119.71
inc. VAT
In stock
Price Break
3+
£88.79
5+
£83.80
10+
£82.80
15+
£81.80
20+
£80.81
30+
£79.81
40+
£74.82
50+
£73.82
60+
£72.82
75+
£71.83
100+
£69.83
Description
Description
|
INA KBS..-PP Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 68mm
Technical
Technical

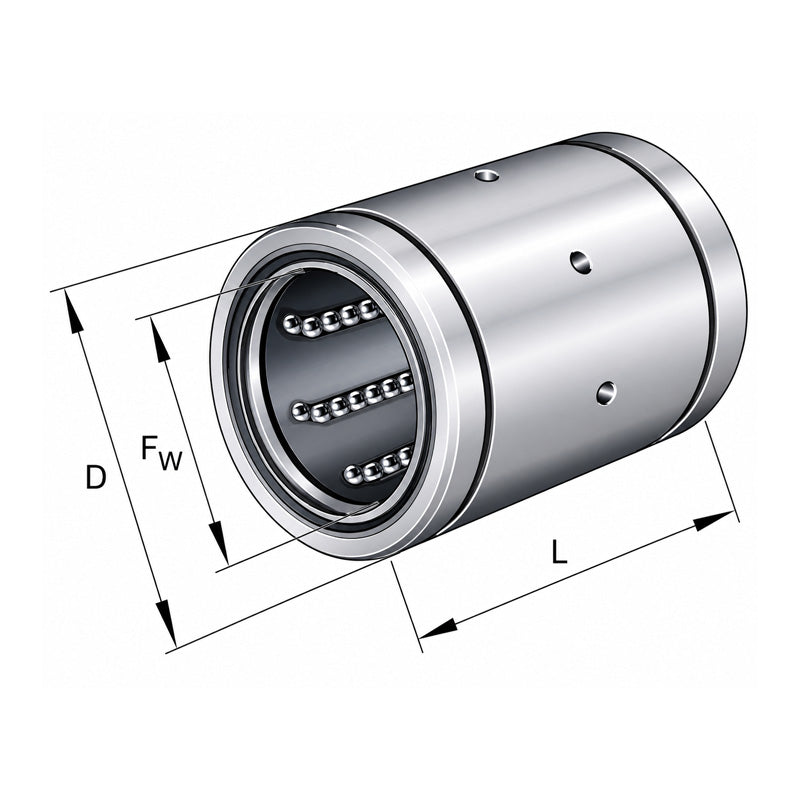

| Fw | 30mm |
|---|---|
| D | 47mm |
| L | 68mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.85mm |
| DN | 44.5mm |
| L2 | 51.7mm |
| Mass | 0.3 kg |
| Basic dynamic load rating C min | 3600 N |
| Basic static load rating C0 min | 2850 N |
| Basic dynamic load rating C max | 3800 N |
| Basic static load rating C0 max | 3600 N |
