SKU: KBS30-INA

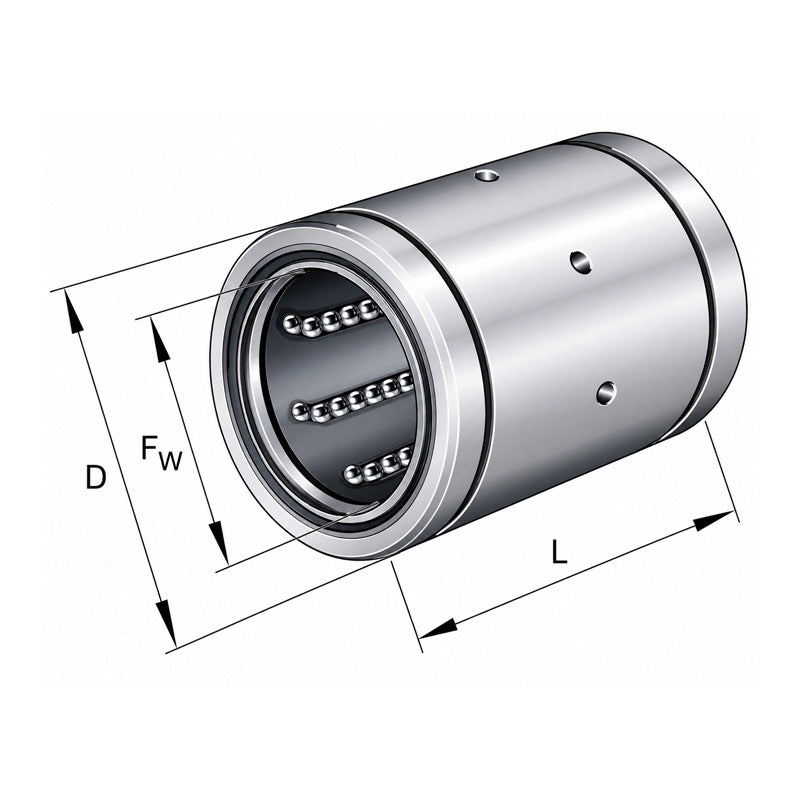

INA KBS30 Linear Ball Bushing 30x47x68mm
INA KBS30 Linear Ball Bushing 30x47x68mm
Regular price
£94.85
ex VAT£113.82inc. VAT
Regular price
Sale price
£94.85
ex VAT£113.82
inc. VAT
In stock
Price Break
3+
£84.42
5+
£79.67
10+
£78.73
15+
£77.78
20+
£76.83
30+
£75.88
40+
£71.14
50+
£70.19
60+
£69.24
75+
£68.29
100+
£66.40
Description
Description
|
INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 68mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 47mm |
| L | 68mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.85mm |
| DN | 44.5mm |
| L2 | 51.7mm |
| Mass | 0.3 kg |
| Basic dynamic load rating C min | 3600 N |
| Basic static load rating C0 min | 2850 N |
| Basic dynamic load rating C max | 3800 N |
| Basic static load rating C0 max | 3600 N |
