SKU: KBS25-INA
INA KBS25 Linear Ball Bushing 25x40x58mm
INA KBS25 Linear Ball Bushing 25x40x58mm
Regular price
£80.24
ex VAT£96.29inc. VAT
Regular price
Sale price
£80.24
ex VAT£96.29
inc. VAT
In stock
Price Break
10+
£71.41
19+
£67.40
29+
£66.60
39+
£65.80
49+
£64.99
74+
£64.19
99+
£60.18
199+
£59.38
249+
£58.58
499+
£57.77
999+
£56.17
Couldn't load pickup availability
Description
Description
|
INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 40mm
- Width:
- 58mm
Technical
Technical

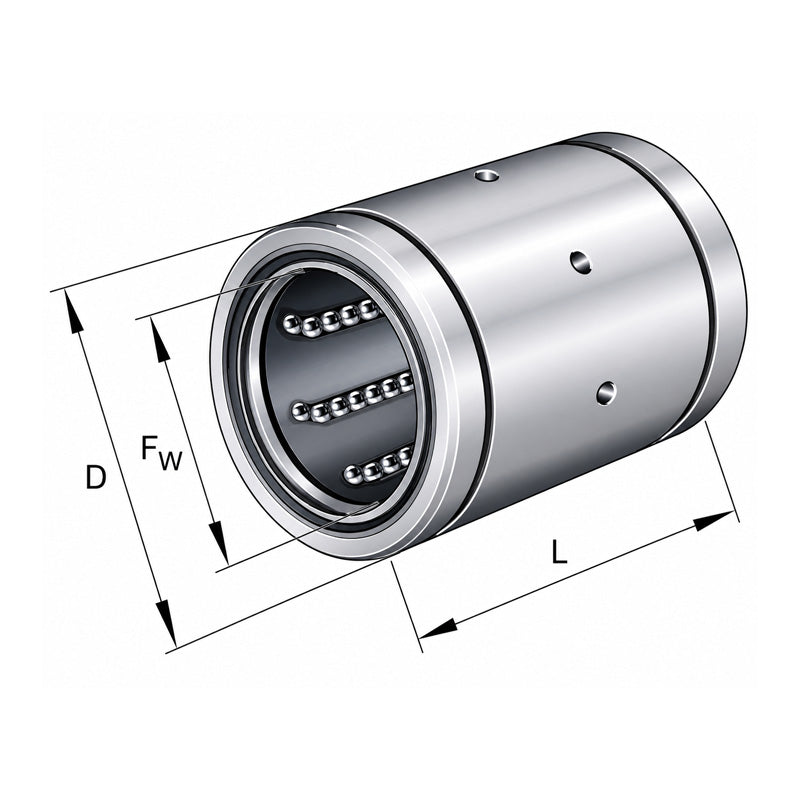

| Fw | 25mm |
|---|---|
| D | 40mm |
| L | 58mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.85mm |
| DN | 37.5mm |
| L2 | 43.7mm |
| Mass | 0.19 kg |
| Basic dynamic load rating C min | 2800 N |
| Basic static load rating C0 min | 2220 N |
| Basic dynamic load rating C max | 2950 N |
| Basic static load rating C0 max | 2850 N |
