SKU: KBS20-INA

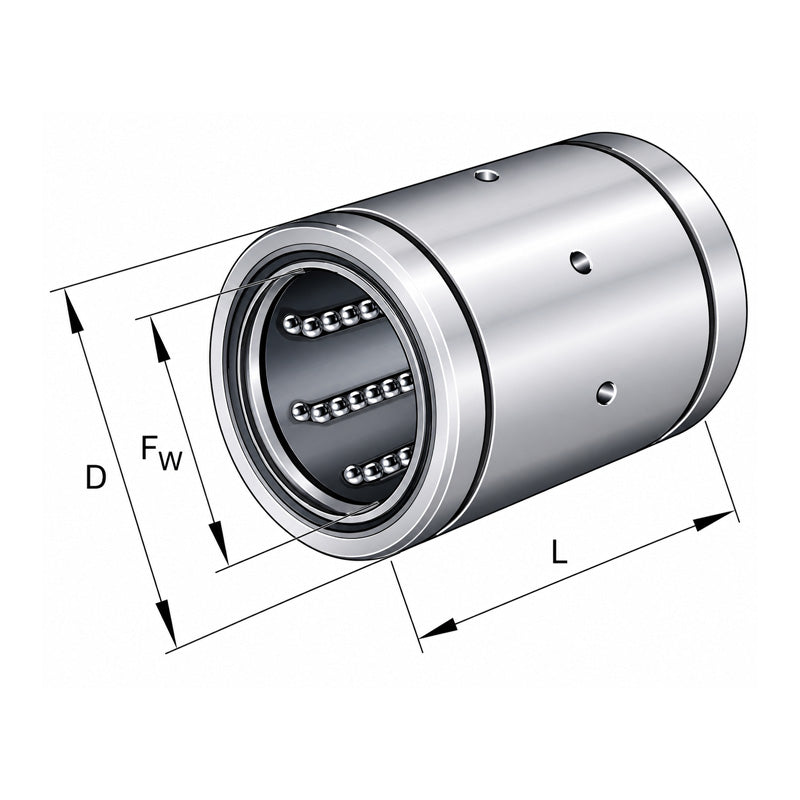

INA KBS20 Linear Ball Bushing 20x32x45mm
INA KBS20 Linear Ball Bushing 20x32x45mm
Regular price
£63.19
ex VAT£75.83inc. VAT
Regular price
Sale price
£63.19
ex VAT£75.83
inc. VAT
In stock
Price Break
3+
£56.24
5+
£53.08
10+
£52.45
15+
£51.82
20+
£51.18
30+
£50.55
40+
£47.39
50+
£46.76
60+
£46.13
75+
£45.50
100+
£44.23
Description
Description
|
INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 45mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 32mm |
| L | 45mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.6mm |
| DN | 30.3mm |
| L2 | 31.2mm |
| Mass | 0.09 kg |
| Basic dynamic load rating C min | 1570 N |
| Basic static load rating C0 min | 1230 N |
| Basic dynamic load rating C max | 1660 N |
| Basic static load rating C0 max | 1570 N |
