SKU: KBLM-30

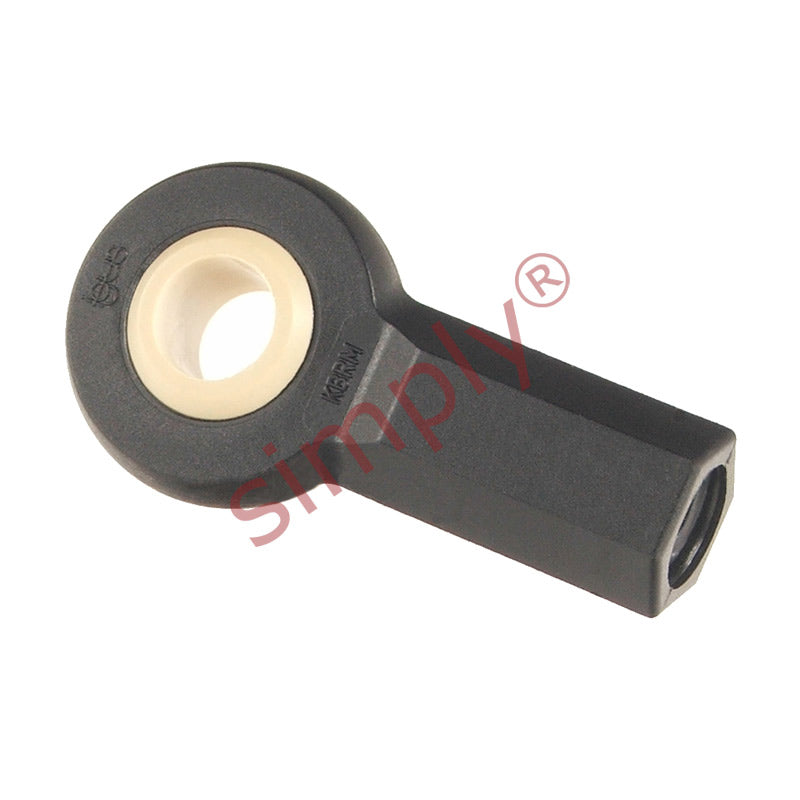

igubal KBLM30 Left Hand Female Plastic Rod End 30mm Bore M30x2 Thread - Allow 2-3 Days
igubal KBLM30 Left Hand Female Plastic Rod End 30mm Bore M30x2 Thread - Allow 2-3 Days
Regular price
£49.94
ex VAT£59.93inc. VAT
Regular price
Sale price
£49.94
ex VAT£59.93
inc. VAT
In stock
Price Break
4+
£44.45
9+
£41.95
19+
£41.45
29+
£40.95
39+
£40.46
49+
£39.96
59+
£37.46
69+
£36.96
79+
£36.46
89+
£35.96
99+
£34.96
Description
Description
|
IGUS igubal® KBLM series left hand female thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint and have high dampening qualities. They are resistant to corrosion and chemicals. Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C Materials: Ball material iglidur® W300, Housing: igumid G Uses: They are suitable for rotary, oscillating and linear movements and are light weight. Tolerances: They are manufactured in accordance to DIN ISO 12240 Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free |
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M30x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 30mm
Technical
Technical
| d1 | 30mm |
|---|---|
| d2 | 70mm |
| d3 | M30x2 |
| d4 | 37mm |
| d5 | 50mm |
| C1 | 25mm |
| B | 37mm |
| h1 | 110mm |
| l3 | 51mm |
| l4 | 145mm |
| W | SW41 |
| Max pivot angle | 22° |
| Max static tensile strength (short term) | 10500 N |
| Max static tensile strength (long term) | 5250 N |
| Max radial load (short term) | 2500 N |
| Max radial load (long term) | 1250 N |
| Min thread depth | 34mm |
| Max torque strength inside thread | 135 Nm |
| Max torque through ball (standard) | 60 Nm |
| Weight | 177 g |
