SKU: KB30-INA

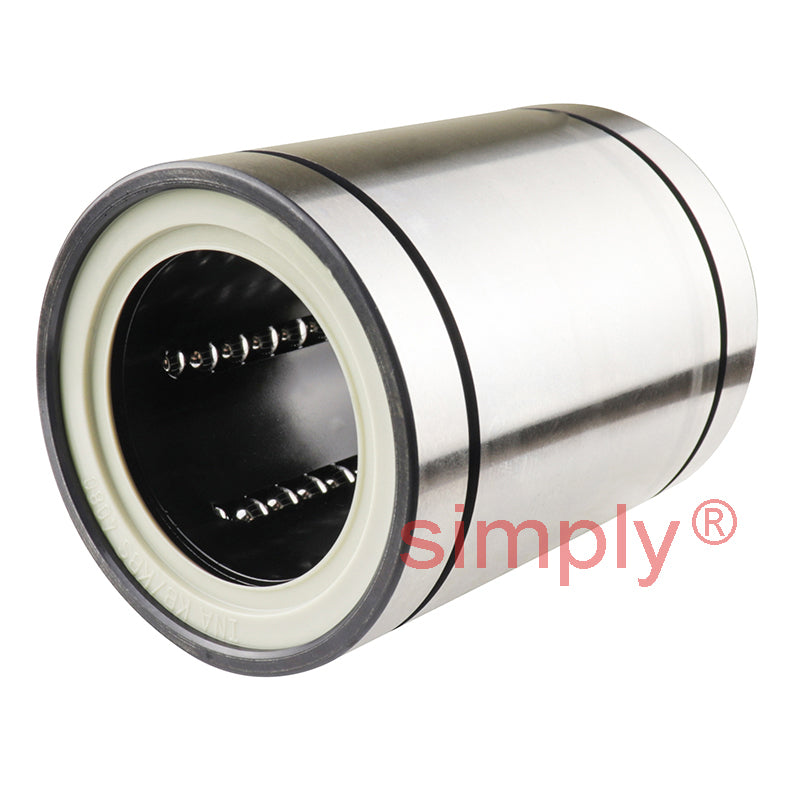

INA KB30 Closed Linear Ball Bushing with Gap Seals 30x47x68mm
INA KB30 Closed Linear Ball Bushing with Gap Seals 30x47x68mm
Regular price
£88.69
ex VAT£106.43inc. VAT
Regular price
Sale price
£88.69
ex VAT£106.43
inc. VAT
In stock
Price Break
3+
£78.93
5+
£74.50
10+
£73.61
15+
£72.73
20+
£71.84
30+
£70.95
40+
£66.52
50+
£65.63
60+
£64.74
75+
£63.86
100+
£62.08
Description
Description
|
INA KB Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 68mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 47mm |
| L | 68mm |
| Numer of rows of balls | 6 |
| BL2 | 1.85mm |
| DN | 44.5mm |
| L2 | 51.7mm |
| Mass | 0.3 kg |
| Basic dynamic load rating C min | 3600 N |
| Basic static load rating C0 min | 2850 N |
| Basic dynamic load rating C max | 3800 N |
| Basic static load rating C0 max | 3600 N |
