SKU: KB20-INA

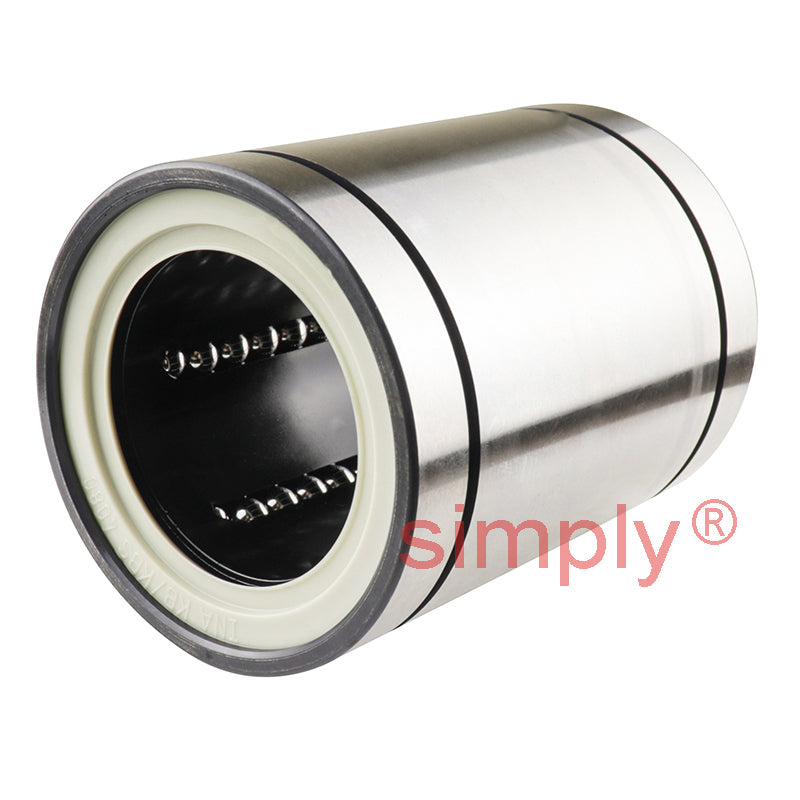

INA KB20 Closed Linear Ball Bushing with Gap Seals 20x32x45mm
INA KB20 Closed Linear Ball Bushing with Gap Seals 20x32x45mm
Regular price
£59.65
ex VAT£71.58inc. VAT
Regular price
Sale price
£59.65
ex VAT£71.58
inc. VAT
In stock
Price Break
3+
£53.09
5+
£50.11
10+
£49.51
15+
£48.91
20+
£48.32
30+
£47.72
40+
£44.74
50+
£44.14
60+
£43.54
75+
£42.95
100+
£41.76
Description
Description
|
INA KB Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 45mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 32mm |
| L | 45mm |
| Numer of rows of balls | 6 |
| BL2 | 1.6mm |
| DN | 30.3mm |
| L2 | 31.2mm |
| Mass | 0.09 kg |
| Basic dynamic load rating C min | 1570 N |
| Basic static load rating C0 min | 1230 N |
| Basic dynamic load rating C max | 1660 N |
| Basic static load rating C0 max | 1570 N |
