SKU: K89308-NTN

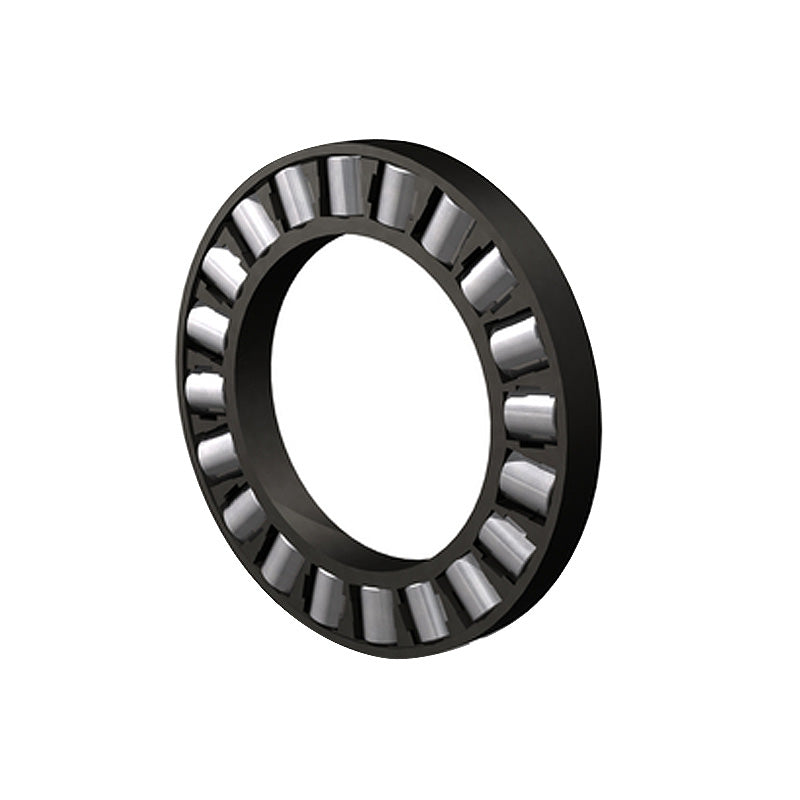

NTN K89308 Needle Roller Cage Only 40x78x7mm - Allow 2-3 Days
NTN K89308 Needle Roller Cage Only 40x78x7mm - Allow 2-3 Days
Regular price
£77.57
ex VAT£93.08inc. VAT
Regular price
Sale price
£77.57
ex VAT£93.08
inc. VAT
In stock
Price Break
3+
£76.79
4+
£73.69
9+
£72.14
19+
£69.81
49+
£68.26
99+
£64.38
499+
£54.30
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 78mm
- Width:
- 7mm
Technical
Technical
| Dc1 - Inside diameter | 40mm |
|---|---|
| Dc - Outside diameter | 78mm |
| Dw - Roller Width | 7mm |
| WS inner ring reference | WS89308 |
| GS outer ring reference | GS89308 |
| Ea - Rollers reference outer diameter | 74.4mm |
| Eb - Rollers reference inner diameter | 46mm |
| Ca - Dynamic axial load rating | 85 kN |
| C0a - Static axial load rating | 277 kN |
| Cua - Limit axial load rating | 34 kN |
| Grease lubrication limit speed | 1000 tr/min |
| Oil lubrication limit speed | 4000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
