Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 60mm
- Width:
- 5.5mm
Technical
Technical

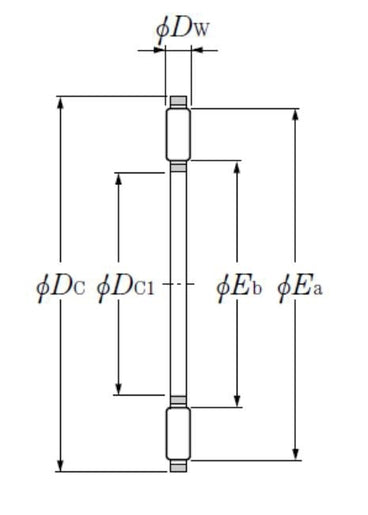

| Dc1 - Inside diameter | 30mm |
|---|---|
| Dc - Outside diameter | 60mm |
| Dw - Roller Width | 5.5mm |
| WS inner ring reference | WS89306 |
| GS outer ring reference | GS89306 |
| Ea - Rollers reference outer diameter | 56.4mm |
| Eb - Rollers reference inner diameter | 34mm |
| Ca - Dynamic axial load rating | 54 kN |
| C0a - Static axial load rating | 166 kN |
| Cua - Limit axial load rating | 20.2 kN |
| Grease lubrication limit speed | 1300 tr/min |
| Oil lubrication limit speed | 5000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
