SKU: K55x60x27-EU

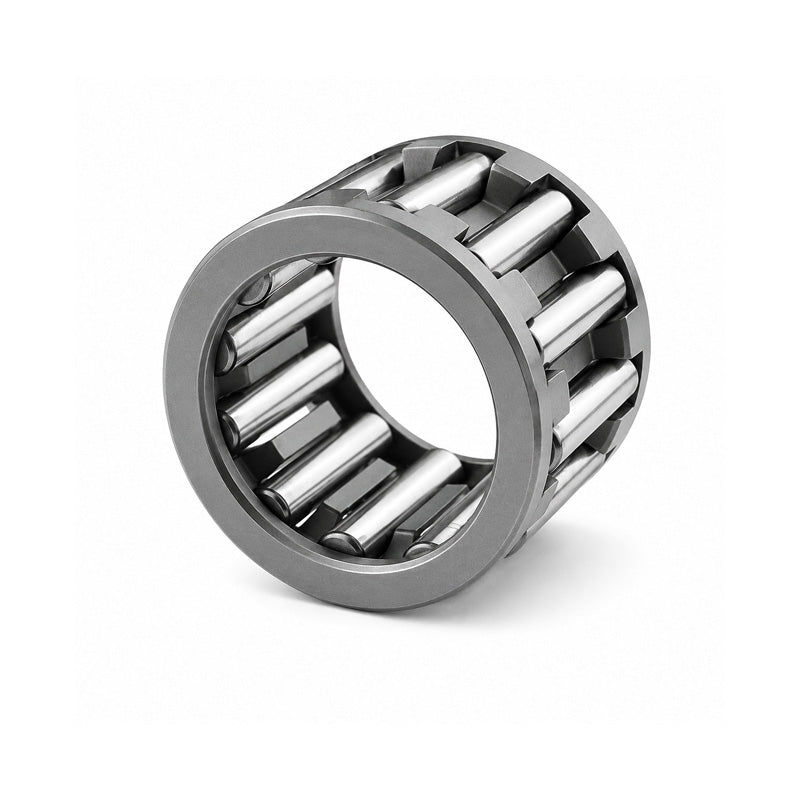

K55x60x27 Budget Needle Roller Cage Assembly 55x60x27mm
K55x60x27 Budget Needle Roller Cage Assembly 55x60x27mm
Regular price
£19.30
ex VAT£23.16inc. VAT
Regular price
Sale price
£19.30
ex VAT£23.16
inc. VAT
Equivalent to: KT556027
In stock
Price Break
10+
£17.18
19+
£16.21
29+
£16.02
39+
£15.83
49+
£15.63
74+
£15.44
99+
£14.48
199+
£14.28
249+
£14.09
499+
£13.90
999+
£13.51
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT556027
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 60mm
- Width:
- 27mm
Technical
Technical
| Fw | 55mm |
|---|---|
| Ew | 60mm |
| U | 27mm |
| Dynamic load C | 35800 N |
| Static load Co | 96500 N |
| Fatigue load limit Pu | 12000 N |
| Speed in grease | 5300 rpm |
| Speed in oil | 7500 rpm |
| Weight | 60 g |
