SKU: K40x45x27-MB

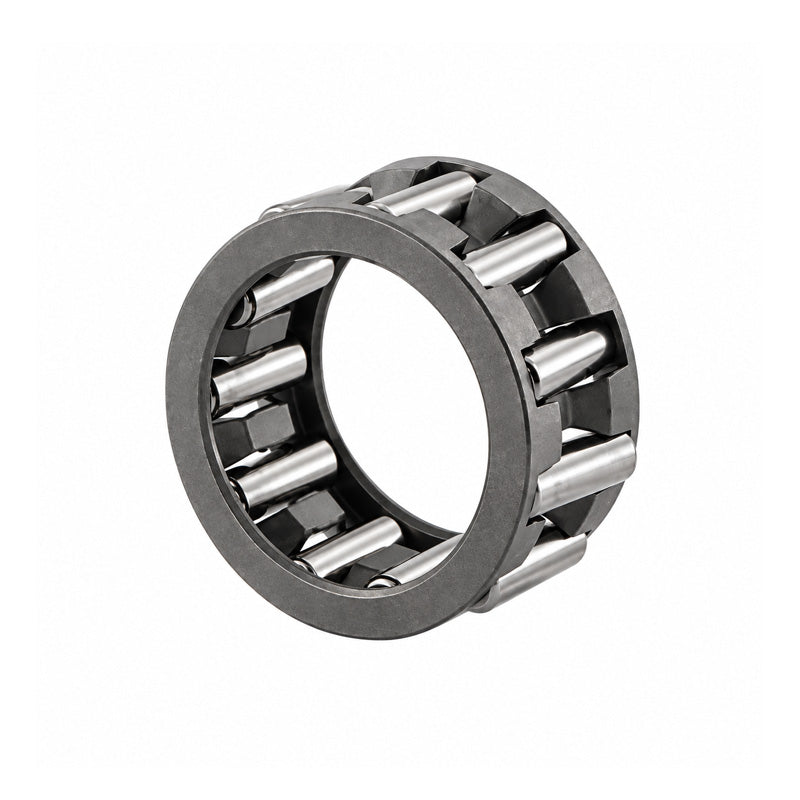

Major Brand K40x45x27 Needle Roller Cage Assembly 40x45x27mm
Major Brand K40x45x27 Needle Roller Cage Assembly 40x45x27mm
Regular price
£8.96
ex VAT£10.75inc. VAT
Regular price
Sale price
£8.96
ex VAT£10.75
inc. VAT
Equivalent to: KT404527
In stock
Price Break
10+
£7.97
19+
£7.53
29+
£7.44
39+
£7.35
49+
£7.26
74+
£7.17
99+
£6.72
199+
£6.63
249+
£6.54
499+
£6.45
999+
£6.27
Couldn't load pickup availability
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT404527
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 45mm
- Width:
- 27mm
Technical
Technical
| Fw | 40mm |
|---|---|
| Ew | 45mm |
| U | 27mm |
| Dynamic load | 31400 N |
| Static load | 73500 N |
| Fatigue load limit Pu | 9000 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| Weight | 46 g |
