SKU: K40x45x27-EU

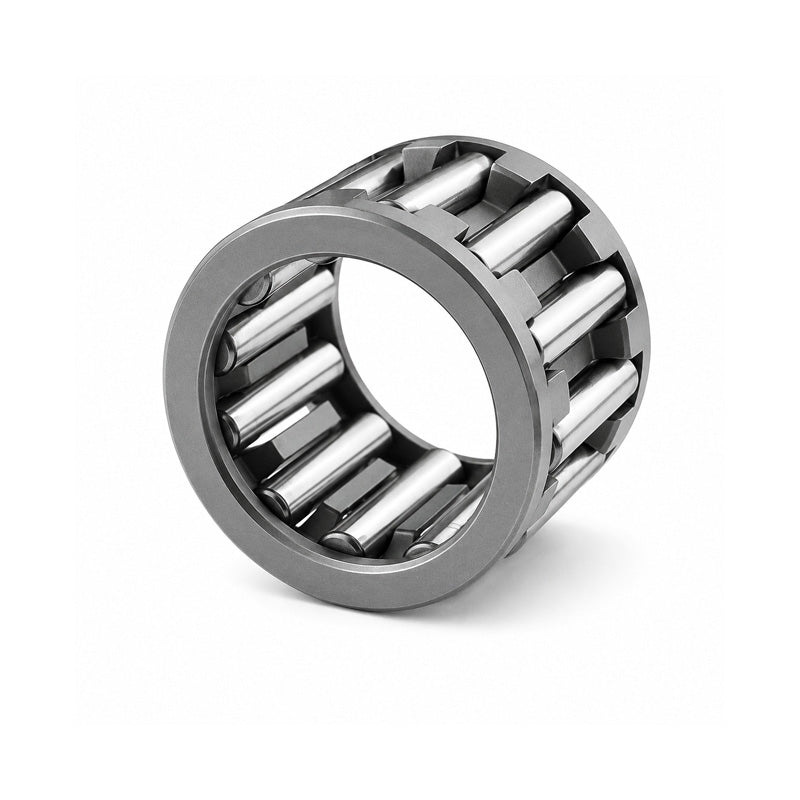

K40x45x27 Budget Needle Roller Cage Assembly 40x45x27mm
K40x45x27 Budget Needle Roller Cage Assembly 40x45x27mm
Regular price
£7.22
ex VAT£8.66inc. VAT
Regular price
Sale price
£7.22
ex VAT£8.66
inc. VAT
Equivalent to: KT404527
In stock
Price Break
10+
£6.43
19+
£6.06
29+
£5.99
39+
£5.92
49+
£5.85
74+
£5.78
99+
£5.42
199+
£5.34
249+
£5.27
499+
£5.20
999+
£5.05
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT404527
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 45mm
- Width:
- 27mm
Technical
Technical
| Fw | 40mm |
|---|---|
| Ew | 45mm |
| U | 27mm |
| Dynamic load C | 31400 N |
| Static load Co | 73500 N |
| Fatigue load limit Pu | 9000 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| Weight | 46 g |
