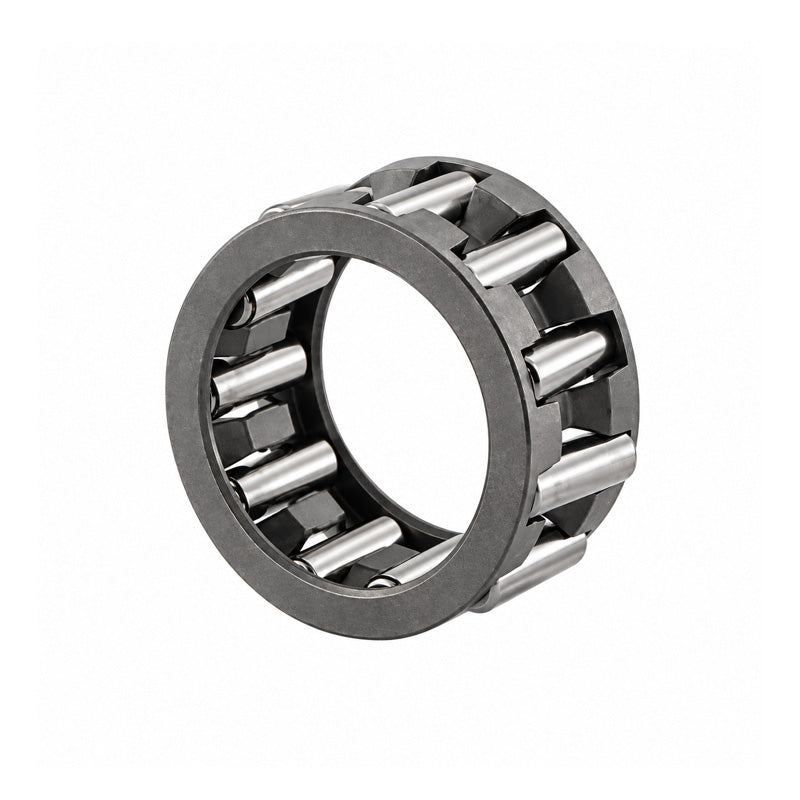

Major Brand K32x37x13 Needle Roller Cage Assembly 32x37x13mm
Major Brand K32x37x13 Needle Roller Cage Assembly 32x37x13mm
Regular price
£9.42
ex VAT£11.30inc. VAT
Regular price
Sale price
£9.42
ex VAT£11.30
inc. VAT
Equivalent to: KT323713
In stock
Price Break
10+
£8.38
19+
£7.91
29+
£7.82
39+
£7.72
49+
£7.63
74+
£7.54
99+
£7.07
199+
£6.97
249+
£6.88
499+
£6.78
999+
£6.59
Couldn't load pickup availability
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT323713
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 32mm
- Outside Diameter:
- 37mm
- Width:
- 13mm
Technical
Technical
| Fw | 32mm |
|---|---|
| Ew | 37mm |
| U | 13mm |
| Dynamic load | 14700 N |
| Static load | 25500 N |
| Fatigue load limit Pu | 3000 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| Weight | 18 g |
