SKU: K003

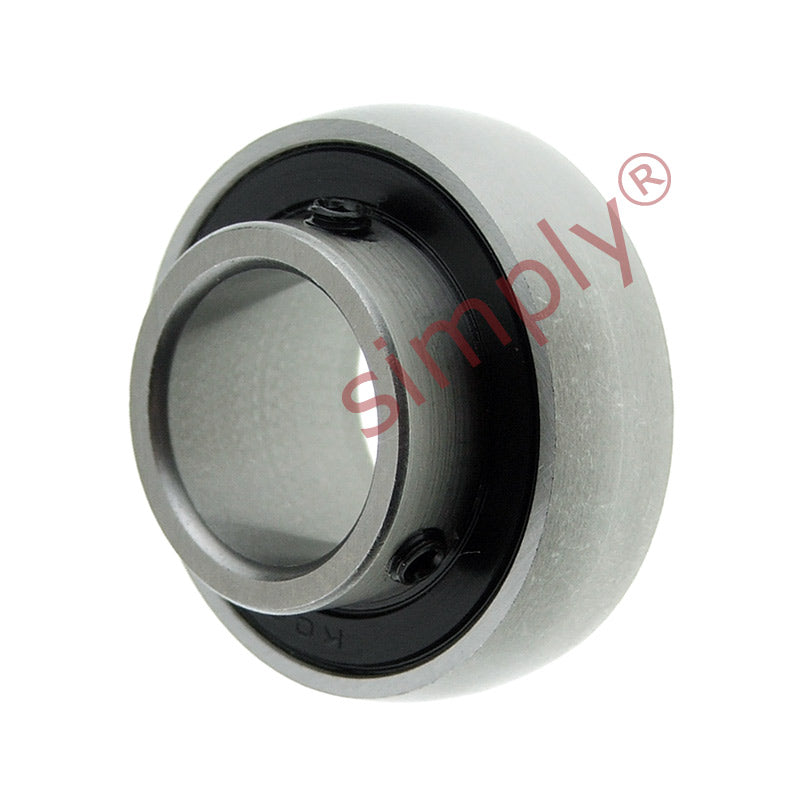

K003 Metric Grub Screw Type Bearing Insert with 17mm Bore 35mm Outside Dia
K003 Metric Grub Screw Type Bearing Insert with 17mm Bore 35mm Outside Dia
Regular price
£7.81
ex VAT£9.37inc. VAT
Regular price
Sale price
£7.81
ex VAT£9.37
inc. VAT
In stock
Price Break
3+
£6.95
4+
£6.56
9+
£6.48
19+
£6.40
49+
£6.33
99+
£6.25
499+
£5.86
999+
£5.78
1999+
£5.70
2999+
£5.62
4999+
£5.47
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Style:
- K
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 35mm |
| Bi | 17.5mm |
| Be | 10mm |
| r | 0.5mm |
| n | 5mm |
| G | 3.5mm |
| W | 23.1mm |
| Grub screw | M4X0.5 |
| Dynamic load | 5978N ~ 609.586 kgf |
| Static load | 3283N ~ 334.773 kgf |
| Weight | 0.06 kg |
