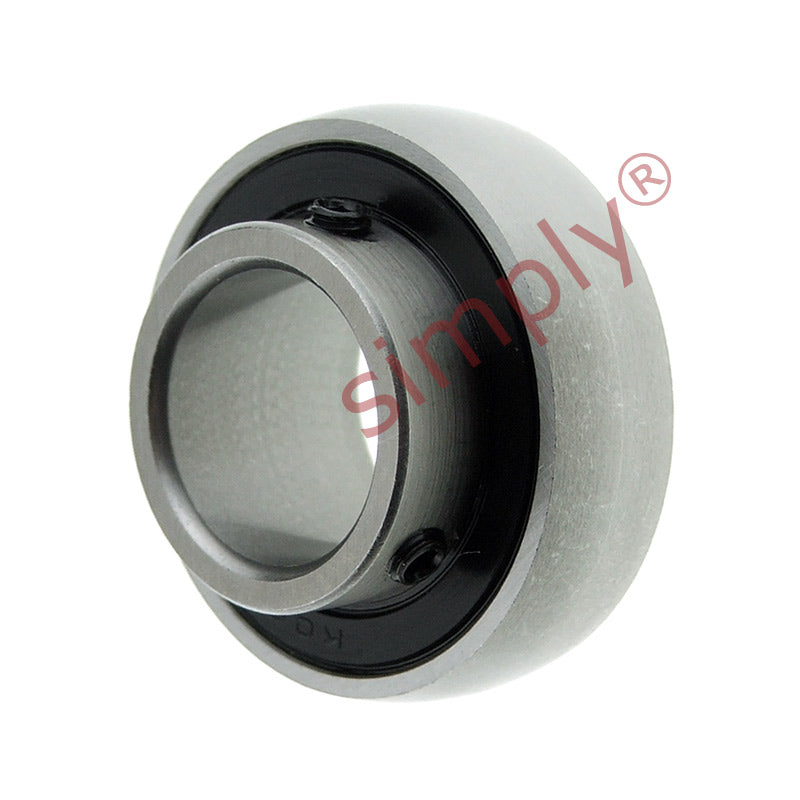

K002 Metric Grub Screw Type Bearing Insert with 15mm Bore 32mm Outside Dia
K002 Metric Grub Screw Type Bearing Insert with 15mm Bore 32mm Outside Dia
Regular price
£6.84
ex VAT£8.21inc. VAT
Regular price
Sale price
£6.84
ex VAT£8.21
inc. VAT
In stock
Price Break
3+
£6.09
4+
£5.75
9+
£5.68
19+
£5.61
49+
£5.54
99+
£5.47
499+
£5.13
999+
£5.06
1999+
£4.99
2999+
£4.92
4999+
£4.79
Share this product
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Style:
- K
Technical
Technical
| Inside Diameter d | 15mm |
|---|---|
| Outside Diameter D | 32mm |
| Bi | 16.5mm |
| Be | 9mm |
| r | 0.5mm |
| n | 4.5mm |
| G | 3.5mm |
| W | 20.02mm |
| Grub screw | M4X0.5 |
| Dynamic load | 5586N ~ 569.613 kgf |
| Static load | 2842N ~ 289.803 kgf |
| Weight | 0.05 kg |
