SKU: K001

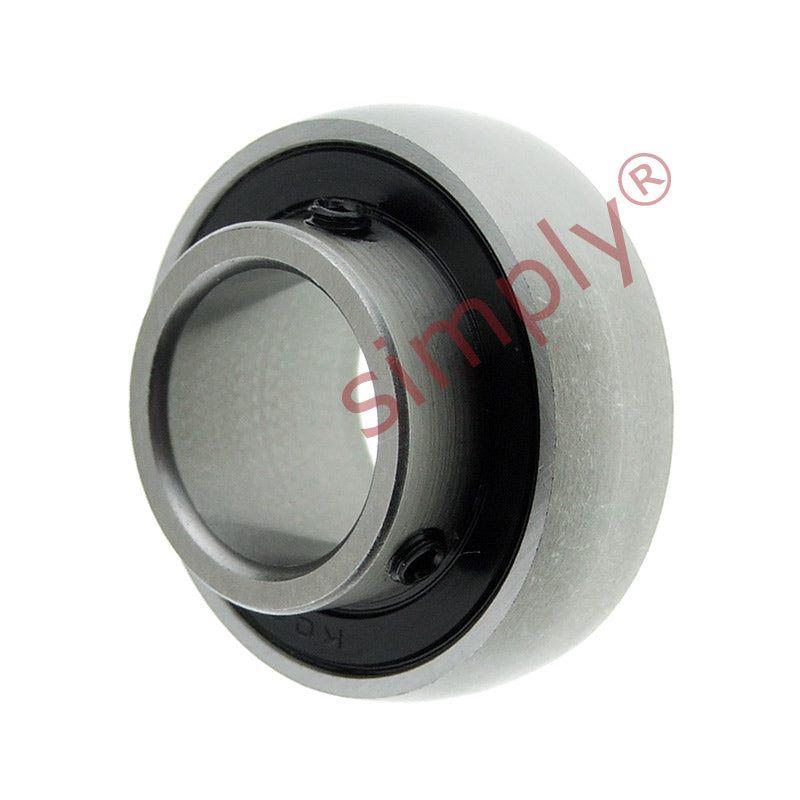

K001 Metric Grub Screw Type Bearing Insert with 12mm Bore 28mm Outside Dia
K001 Metric Grub Screw Type Bearing Insert with 12mm Bore 28mm Outside Dia
Regular price
£9.09
ex VAT£10.91inc. VAT
Regular price
Sale price
£9.09
ex VAT£10.91
inc. VAT
In stock
Price Break
10+
£8.09
19+
£7.64
29+
£7.54
39+
£7.45
49+
£7.36
74+
£7.27
99+
£6.82
199+
£6.73
249+
£6.64
499+
£6.54
999+
£6.36
Couldn't load pickup availability
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Style:
- K
- Type:
- Spherical Outer
Technical
Technical
| Inside Diameter d | 12mm |
|---|---|
| Outside Diameter D | 28mm |
| Bi | 14.5mm |
| Be | 8mm |
| r | 0.5mm |
| n | 4mm |
| G | 3mm |
| W | 17.35mm |
| Grub screw | M3x0.35 |
| Dynamic load | 5096N ~ 519.647 kgf |
| Static load | 2401N ~ 244.834 kgf |
| Weight | 0.03 kg |
