SKU: JSC226MS-JUB

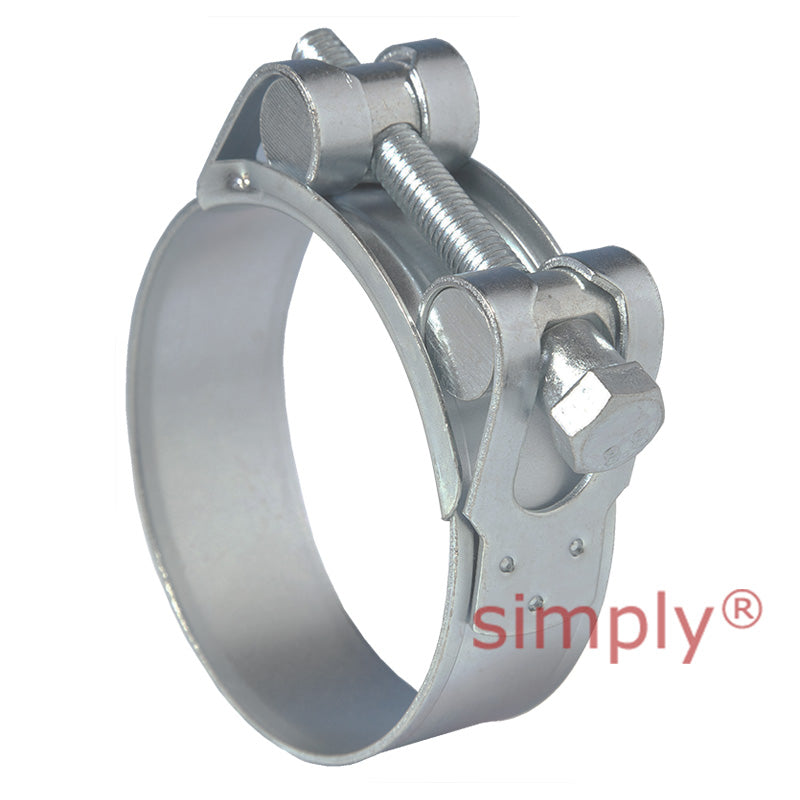

JSC226MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 214mm-226mm Band Width 25mm
JSC226MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 214mm-226mm Band Width 25mm
Regular price
£7.73
ex VAT£9.28inc. VAT
Regular price
Sale price
£7.73
ex VAT£9.28
inc. VAT
Low stock
Price Break
3+
£7.65
5+
£7.34
9+
£7.19
19+
£6.96
49+
£6.80
74+
£6.42
99+
£5.41
199+
£0.00
249+
£0.00
499+
£0.00
999+
£0.00
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 214mm
- Max Adjustment Range:
- 226mm
Technical
Technical
| Adjustment Range | 214mm - 226mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.8mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
