SKU: JSC130MS-JUB

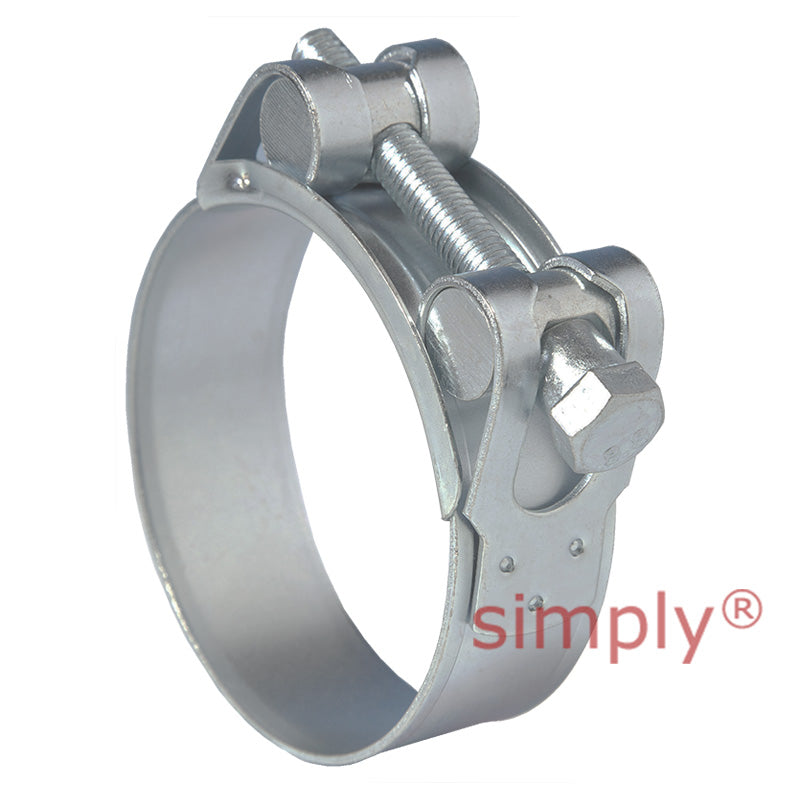

JSC130MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 122mm-130mm Band Width 25mm
JSC130MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 122mm-130mm Band Width 25mm
Regular price
£5.51
ex VAT£6.61inc. VAT
Regular price
Sale price
£5.51
ex VAT£6.61
inc. VAT
Low stock
Price Break
3+
£5.45
5+
£5.23
9+
£5.12
19+
£4.96
49+
£4.85
74+
£4.57
99+
£3.86
199+
£0.00
249+
£0.00
499+
£0.00
999+
£0.00
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 122mm
- Max Adjustment Range:
- 130mm
Technical
Technical
| Adjustment Range | 122mm - 130mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.5mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
